DK-PMB01
Product Category:Controllers
Product Type:Dynamic Controllers
Price:EXW Taiwan Unit Price
Description:

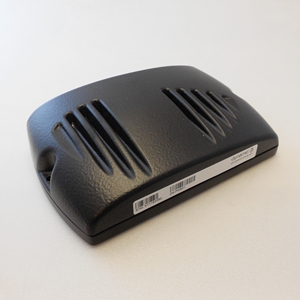

Dynamic Shark Power Module
      Product Specification

►Part No. DK-PMB01

►Basic 60A + 15A boost Power Module for drive only

►Material: Die cast, powder coated

►Protection Rating IPX4

►Operating Temp: -25 to 50℃

►Dimensions: 181 X 111 X 48 (mm)

►Weight: 960g

•User can select a power and remote module to create a system suitable for drive only. Select either the robust 60A power module or the 75A with boost for curb-climbing, hill starting and turning on thick carpets.

•Power Module options for Remote DK-REMD01 (drive only):

- DK-PMB60 (60A)

- DK-PMB01 (75A)
