Home < Spare Parts < Battery Chargers < CTE Battery Chargers < CTE-8A

CTE-8A

Product Category：	Battery Chargers
Product Type：	CTE Battery Chargers
Price：	EXW Taiwan Unit Price
Description:
CTE 24V 8A Lead-Acid Battery Charger

Product Specification

►Model: 4C24080A (Switching mode)

►Output Current (DC): 8A±5%

►Charging Voltage (DC): 28.8V

►Floating Voltage (DC): 27.6V

►Input Current (AC): 3.8A max.

►Input Voltage (AC): 100~240V 50/60Hz

►Efficiency: AC-DC 85% min

►Operating Temperature: 0~40℃

►Operating Humidity: 20%~85%

►Charging Method: Constant current two stage constant voltage

►Battery Application: 24V Lead Acid Rechargeable Battery (26Ahr~75Ahr)

►Output Detection: short circuit detection, reverse power protected, overheat protection, charging plug protection

►Remarks: XLR3 connector; Fan: No

►Dimensions: 185X130X195 (mm)

►Weight: 1.7 kg

►Our standard pack is without a power cord.

►Optional power cord (10A125V) offered: plug type 2-flat pins & 1 ground (for NEMA 5-15 outlet)

♦USA/ TW Plug Power Cord

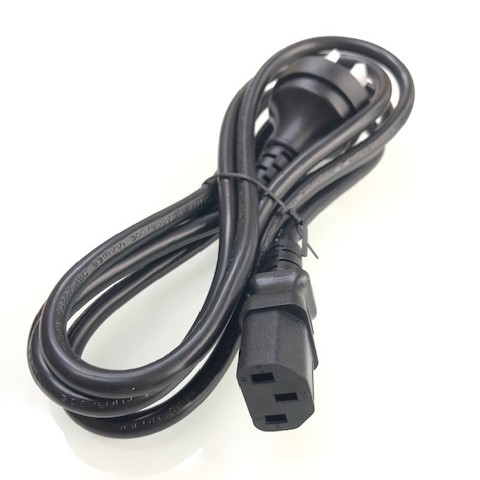

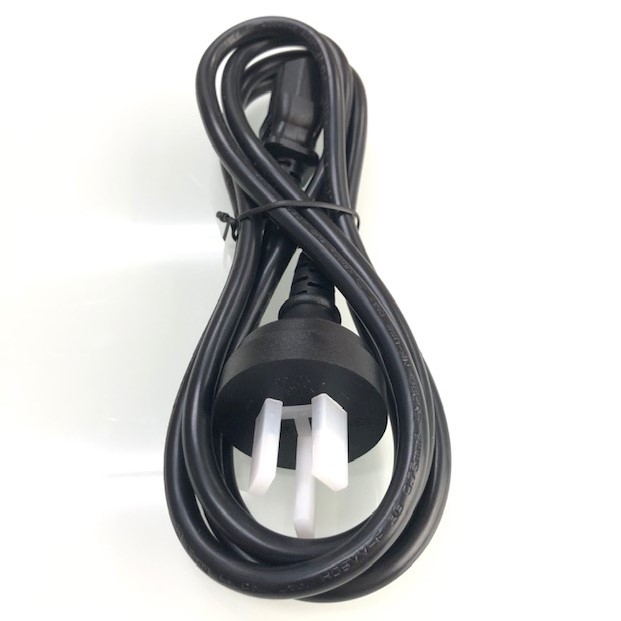

♦AU / NZ Plug Power Cord

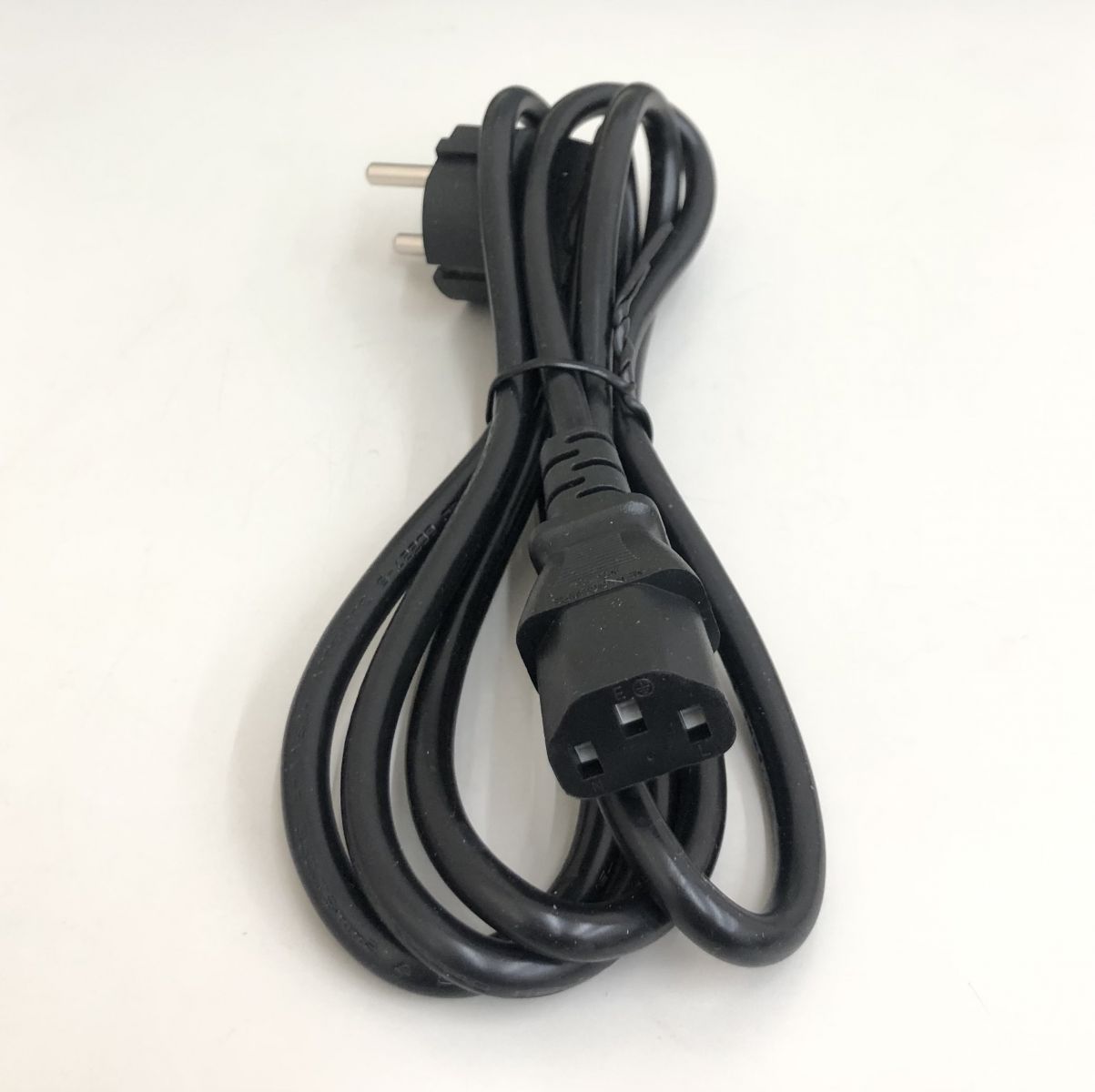

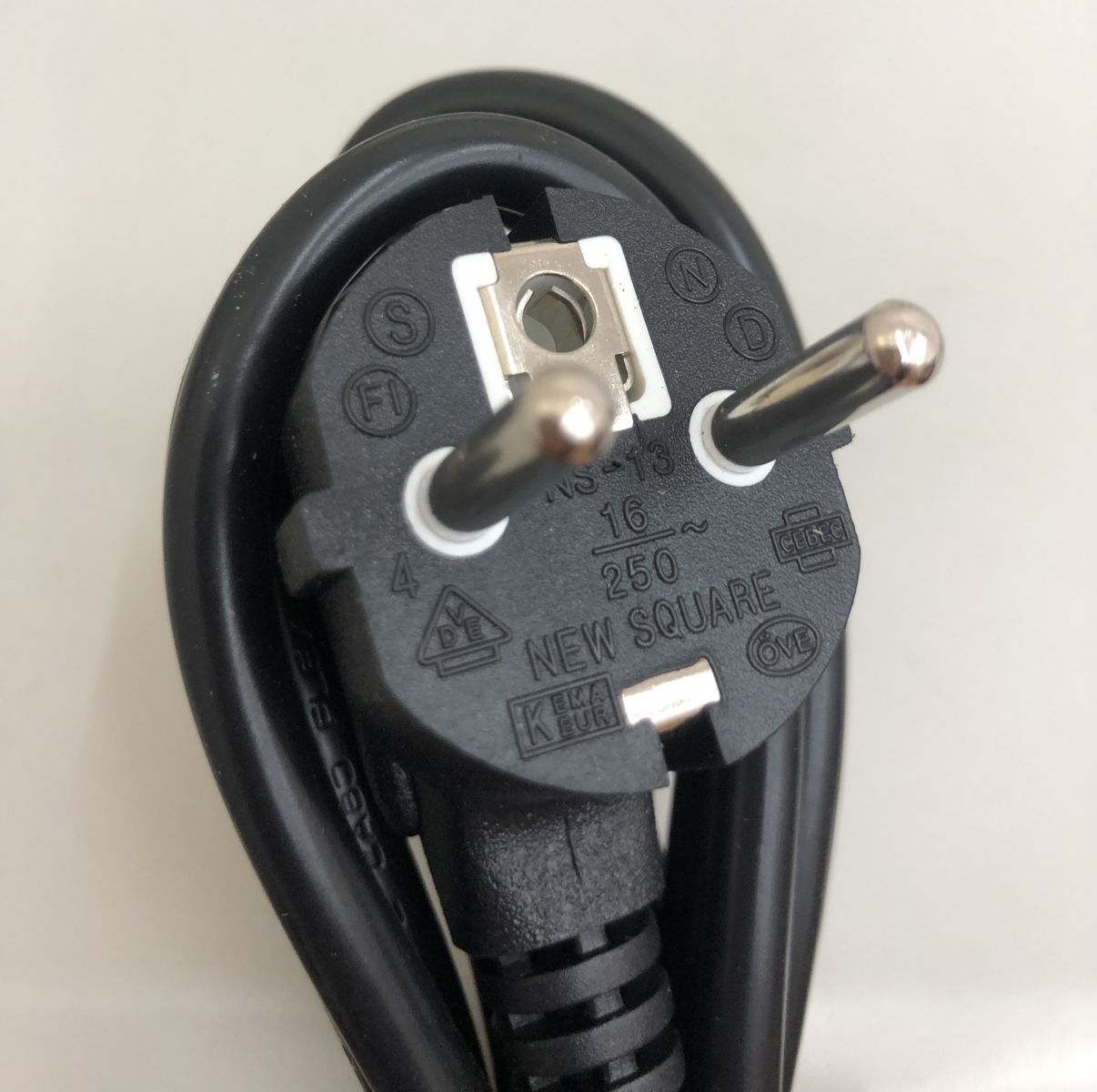

♦EU Plug Power Cord

►Please try extra order a universal adapter (hyperlink) from us or find your suitable power cord locally.

►Can be for Shoprider mobility scooters: 6Runner 14 (888WNLLHD), Flagship, GolfRider, HD, Sprinter Jumbo, Sprinter XL3 Deluxe, and Sprinter XL4 Deluxe

►With AU Plug Power Cord:
