5KVR-M
Product Category:Potentiometers
Product Type:Throttle Potentiometers
Price:EXW Taiwan Unit Price
Description:

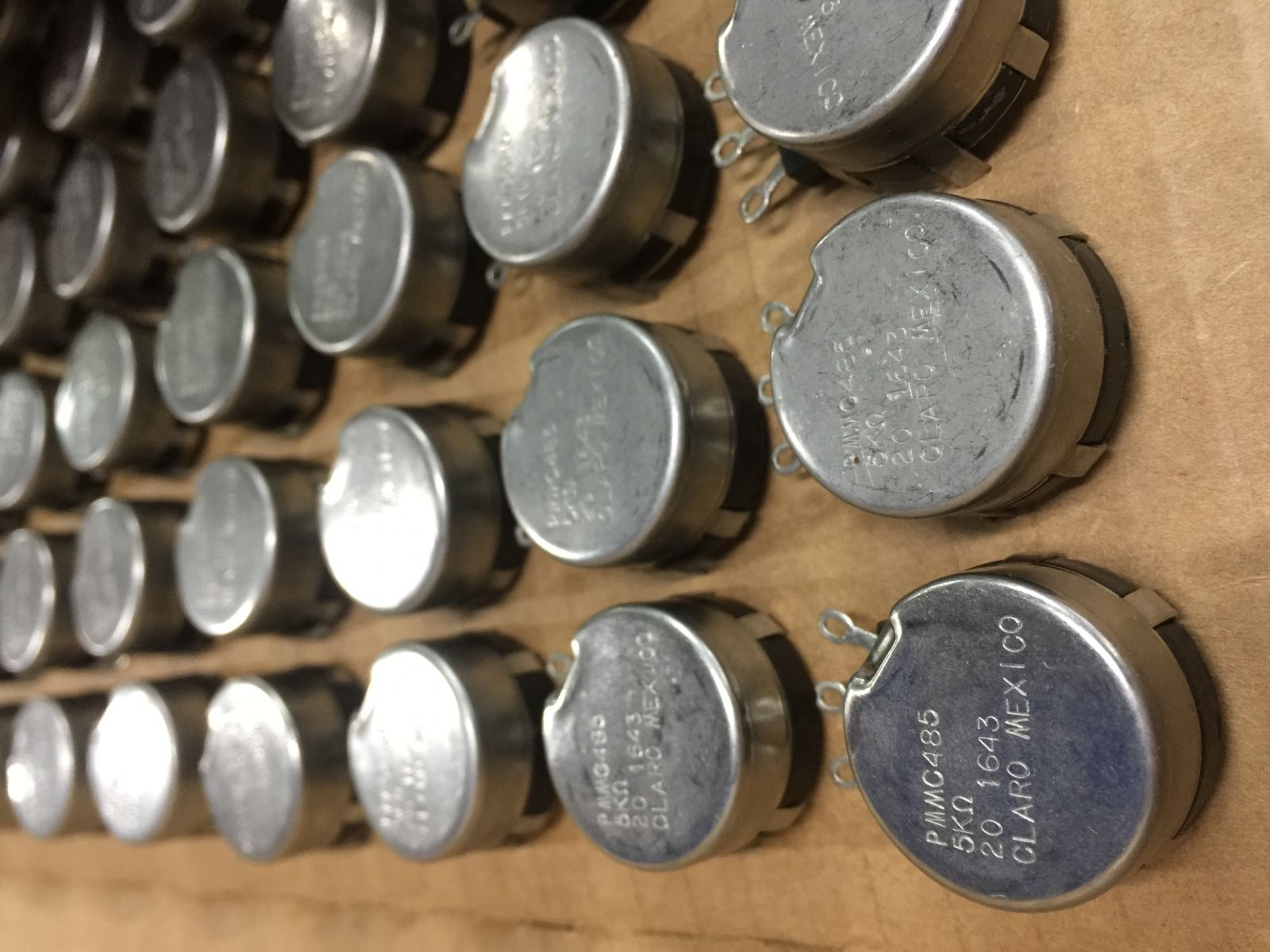

Claro Mexico Throttle Potentiometer (5KVR - PMMC485)
      Product Specification





















These item is not available anymore, original manufacturer stops production.

►Part no.PMMC485

►Resistance value: 5K Ohm

►Tolerance: ±10%

►Independent Linearity Error: ±5%

►Power Dissipation: 1W max.

►Effective Rotation Angle: 45±5(deg.)

►Mechanical Rotation between stops: 312±3(deg.)

►Stop Torque: 12 lb. in. min.

►Mounting Torque: 25 lb. in. min.

►Operating Torque: 6 oz. in. max.

►Bushing Thread: 3/8-32 NEF 2A

►Bushing Length: 0.500 in.±.016

►Shaft Diameter: 0.250 in.±.002

►Shaft Length, measured from mounting surface: 0.812 in.±.032

►Shaft End Feature: Slotted

►Anti-rotation Tab: 9-o’clock position

►Body Dimensions: 1.10 in. max.

►Rotational Life (<10% change in total resistance): 1M rotations min.

►Operating Temperature: -40℃~120℃

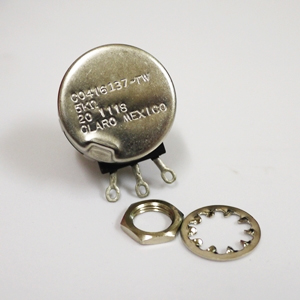

►Replacement of PMC98191, CM44675, C0416137TW, C0416049TW

Part number will be update for the newest, but the same function.



This is an item to be the replacement.

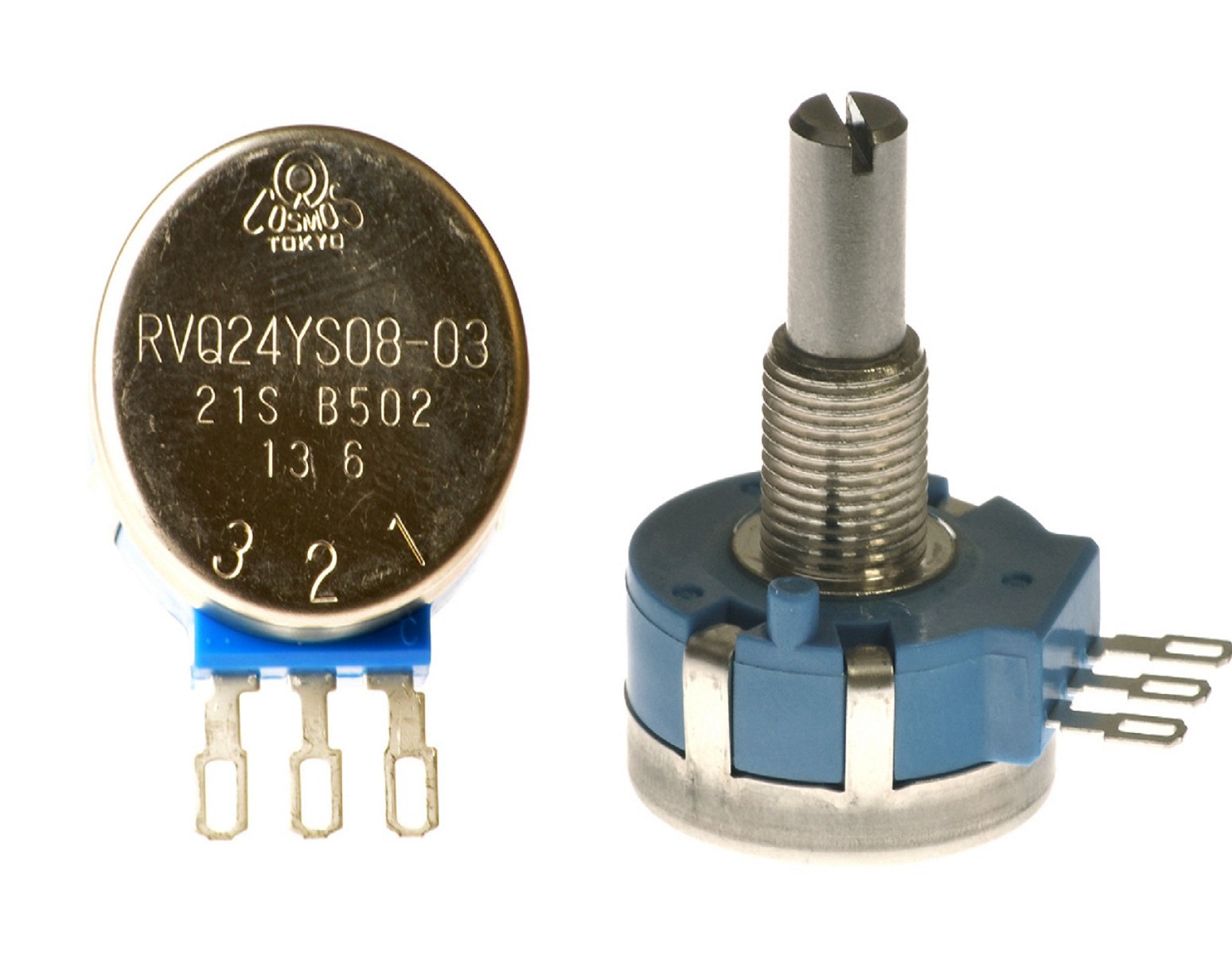

TOCOS RVQ24YS08 03 21S

Please contact us if you need more information.
