Spare Parts
 |
| |||||||||||||||
Product Specification

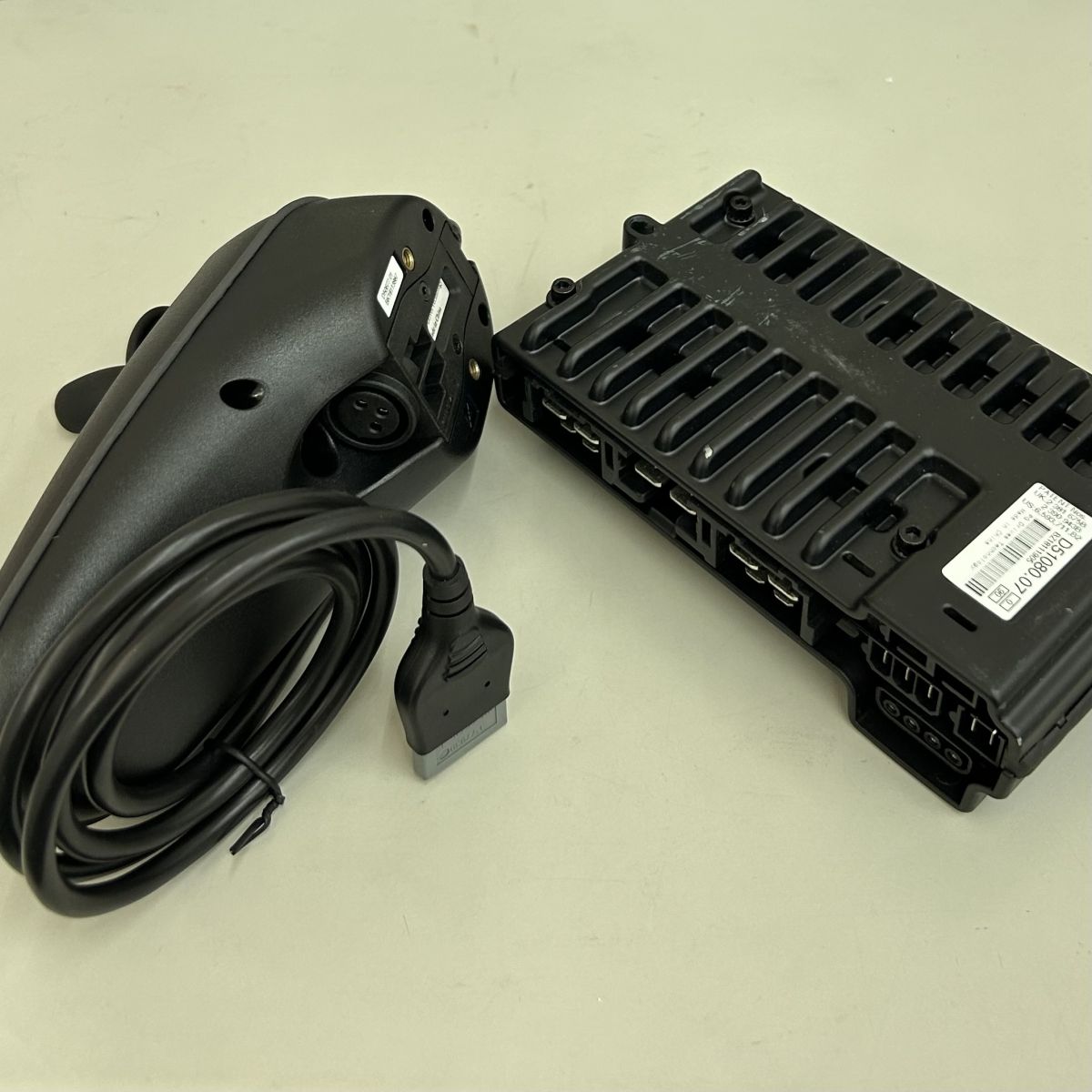

►PG VR2 90A Power Wheelchair Controller (Power Module) ►Power module: 90A version. ►Code:D51080.07( power module)/ D50677.01 (joystick) ►Supply Voltage: 24Vdc ►Operating Voltage: 16Vdc to 28Vdc ►Peak Voltage: 38Vdc ►Reverse Battery Voltage: 40Vdc ►Drive Current: 60A ►PWM Frequency: 20kHz ►Brake Voltage: Programmable, 12Vdc or 24Vdc ►Brake Current: 1A max. per brake ►Battery Charging Current: 12 Arms max. ►Moisture Resistance: Electronics to IPX4 ►Operating Temperature: -25°C to +50°C ►Storage Temperature: -40°C to +65°C ►Safety: Multiple hardware & software strategy ►Designed to ISO7176/14 | ||||||||||||||||
