PGVSI-50A/B
Product Category:Controllers
Product Type:PG Controllers
Price:EXW Taiwan Unit Price
Description:
PG VSI 50A Power Wheelchair Controller (Anderson / Beau)
      Product Specification

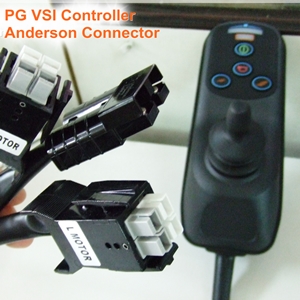

Code: PGVSI-50A (PG VSI 50A Controller / Anderson Connector)....>Few in stock!! Find PG NEW VSI here.

Code: PGVSI-50B (PG VSI 50A Controller / Beau Connector)............>Sold out!! Find PG NEW VSI here.

►Supply Voltage: 24Vdc

►Drive Current: 50A

►Operating Voltage: 16Vdc to 28Vdc

►Peak Voltage: 38Vdc

►Reverse Battery Voltage: 40Vdc

►PWM Frequency: 19.5kHz ± 1%

►Brake Voltage: 12Vdc or 24Vdc

►Brake Current: 1A max.

►Battery Charging Current: 12Arms max.

►Charger Connector: Use Neutrik NC3MX

►Actuator Current: 10A max.

►Moisture Resistance: IPX4

►Operating Temperature: -25°C to +50°C

►Storage Temperature: -40°C to +65°C

►Safety: Multiple hardware & software strategy

►Designed to ISO7176/14

EMC on sample power chair

►Susceptibility: Tested at 30V/m to EN12184 and ANSI/RESNA requirements

►Emissions: To EN55022 Class B

►ESD: IEC801 part 2

►Dimensions: 152 X 179 X 86 (mm)

►Weight: 1300g

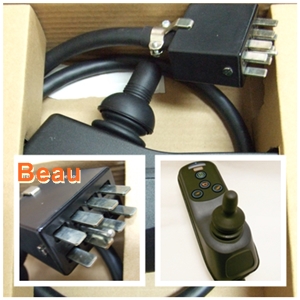

PG VSI 50A (Beau) controller for Shoprider 6Runner 10, 6Runner 10 Deluxe, 6Runner 14, Jetstream L, Jetstream M, Streamer Series, and WIZZ

►Connector options: Anderson or Beau (9 pins)
