HP2A-HP0060WB-M

Product Category：	Battery Chargers
Product Type：	HP Battery Chargers
Price：	EXW Taiwan Unit Price
Description:
High Power 24V 2A Lead-Acid Battery Charger

Product Specification

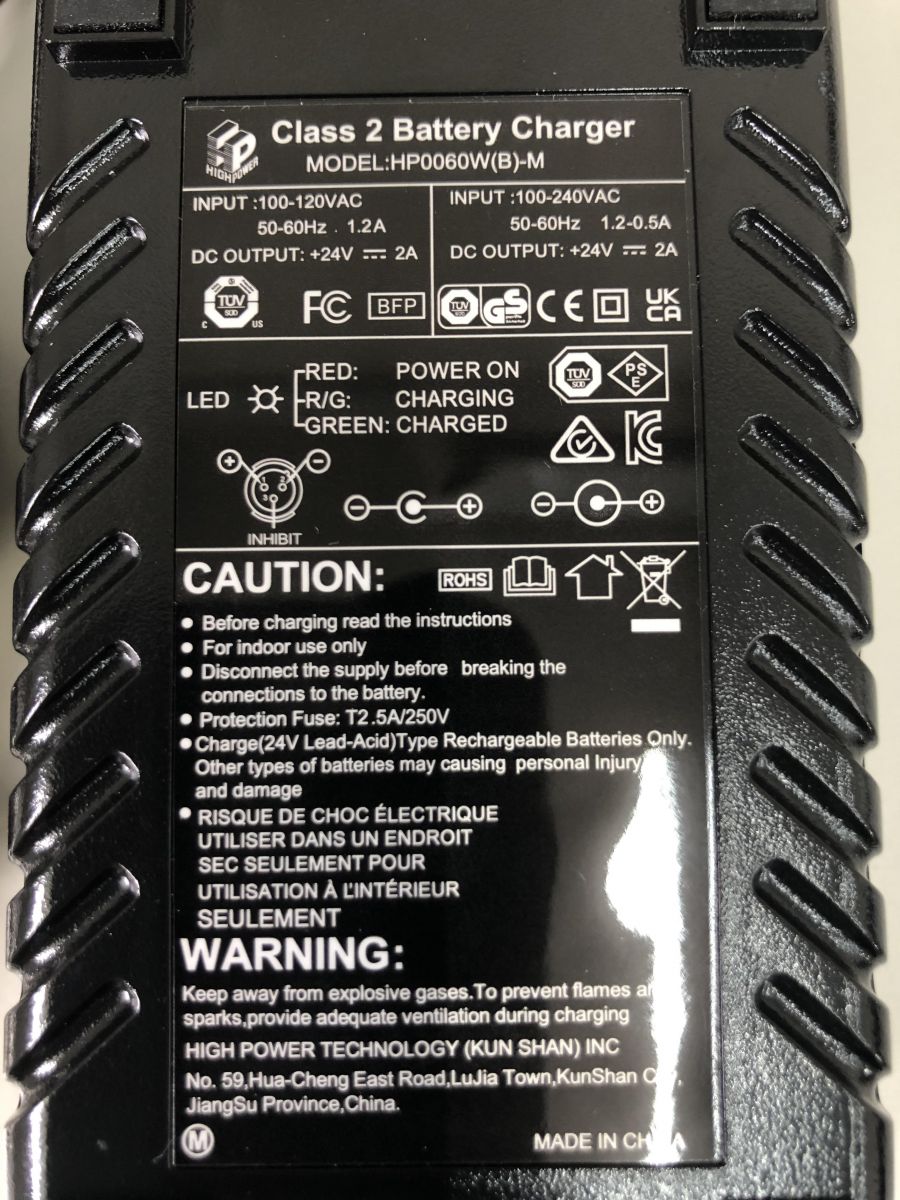

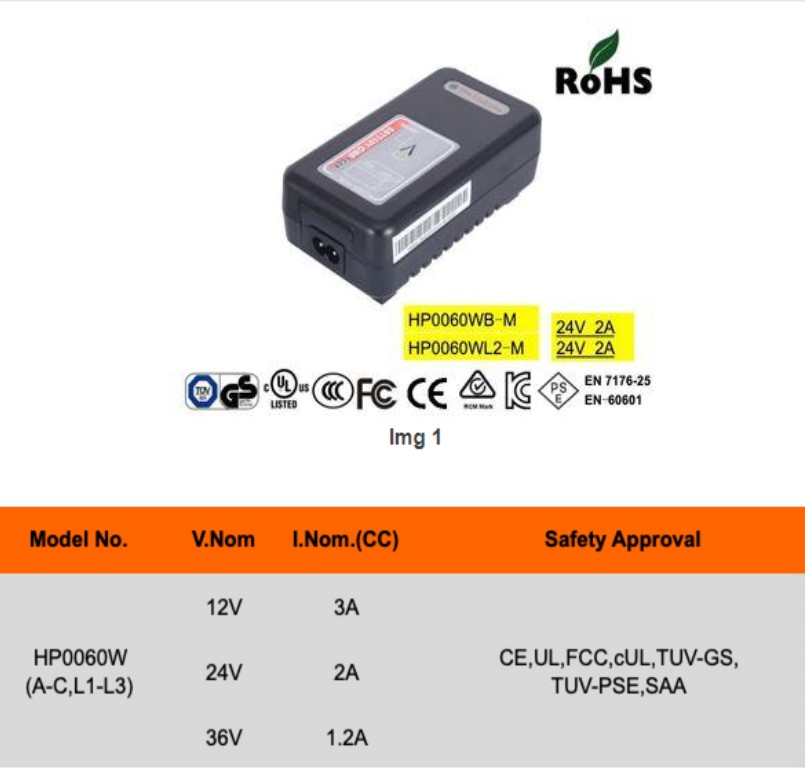

►Model: HP0060WB-M (replace the HP1202B )

►Output Current: 2A dc ± 0.2A

►Output Voltage: 24V ± 2%

►Input Current: <1.2A

►Input Voltage: 100-240Vac

►Efficiency: AC-DC 82% min

►Charging Method: Constant current, constant voltage

►Output Detection: short circuit detection, reverse power protected, output voltage / current limit

►Operating Temperature: 0~40℃

►Operating Humidity: 20%~85%

►Dimensions: L128XW67XH42(mm)

►Weight: (approx.) 365g

►Case material: Polycarbonate

►Remarks: 2 pin connector

►Our standard pack is with a USA 2 pin power cord / or AU 2 pin power cord.

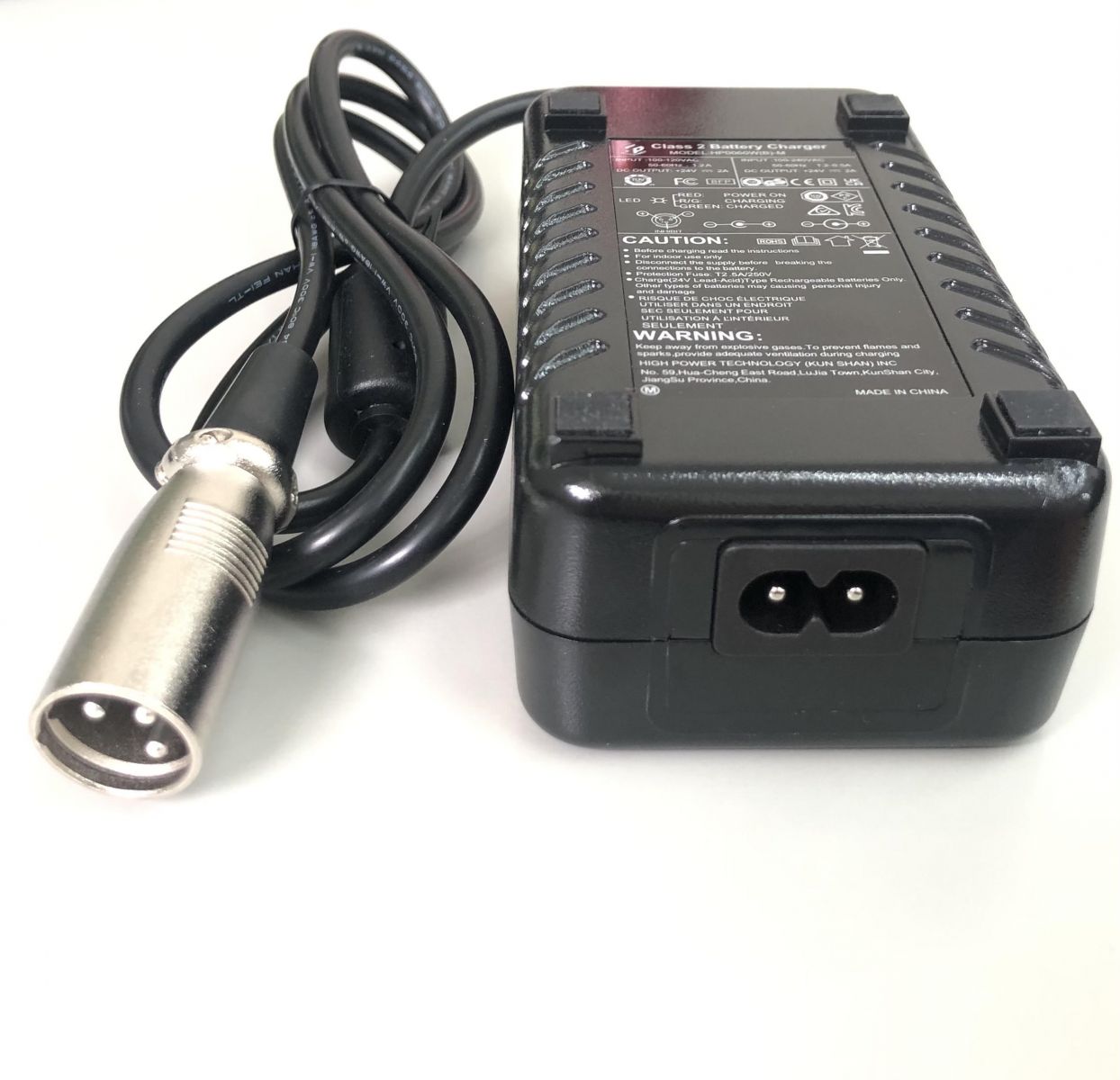

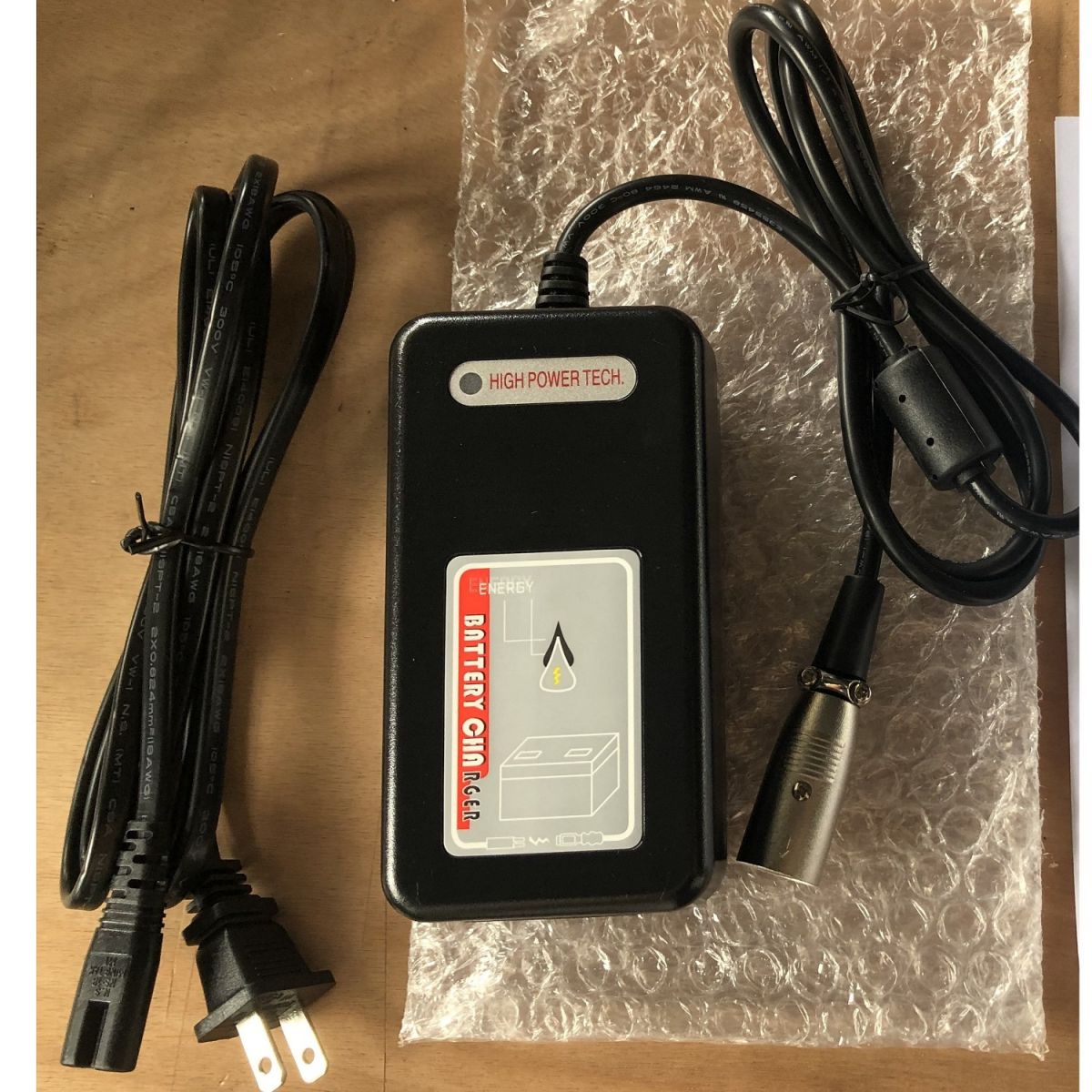

►USA/ TW plug power cord ( HP 2A with 2 pin power cord)

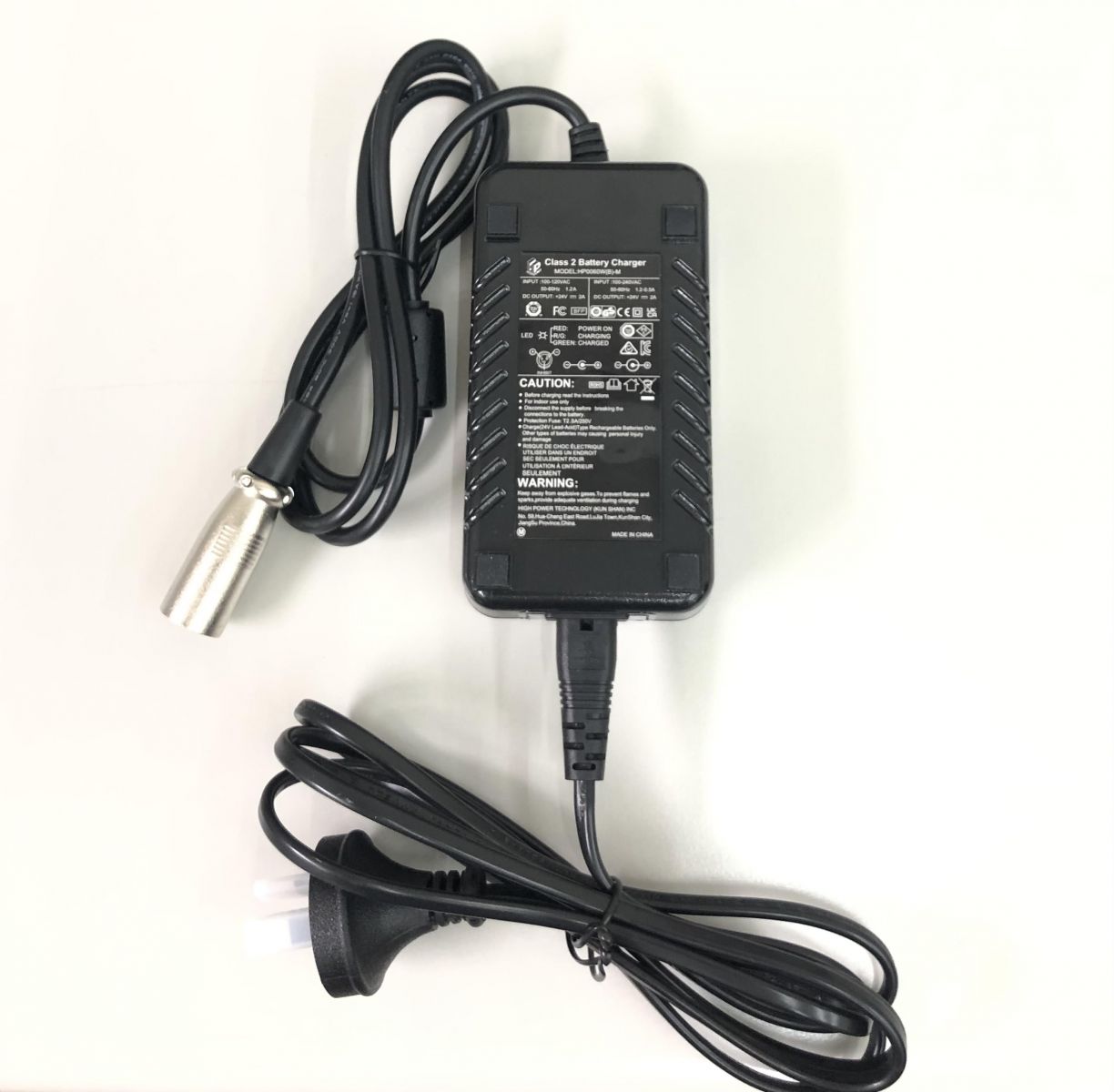

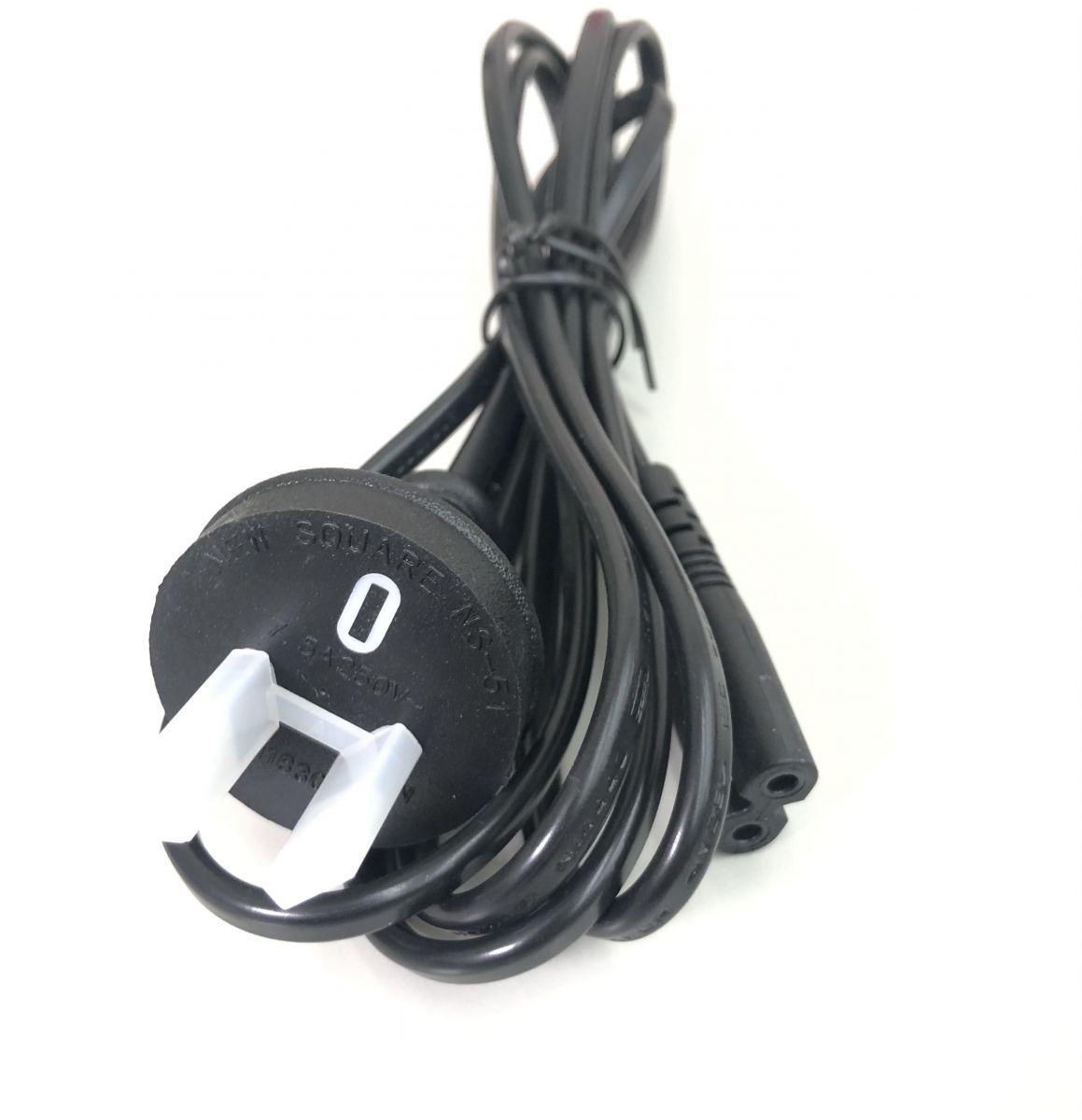

►AU/ NZ plug power cord ( HP 2A with 2 pin power cord)

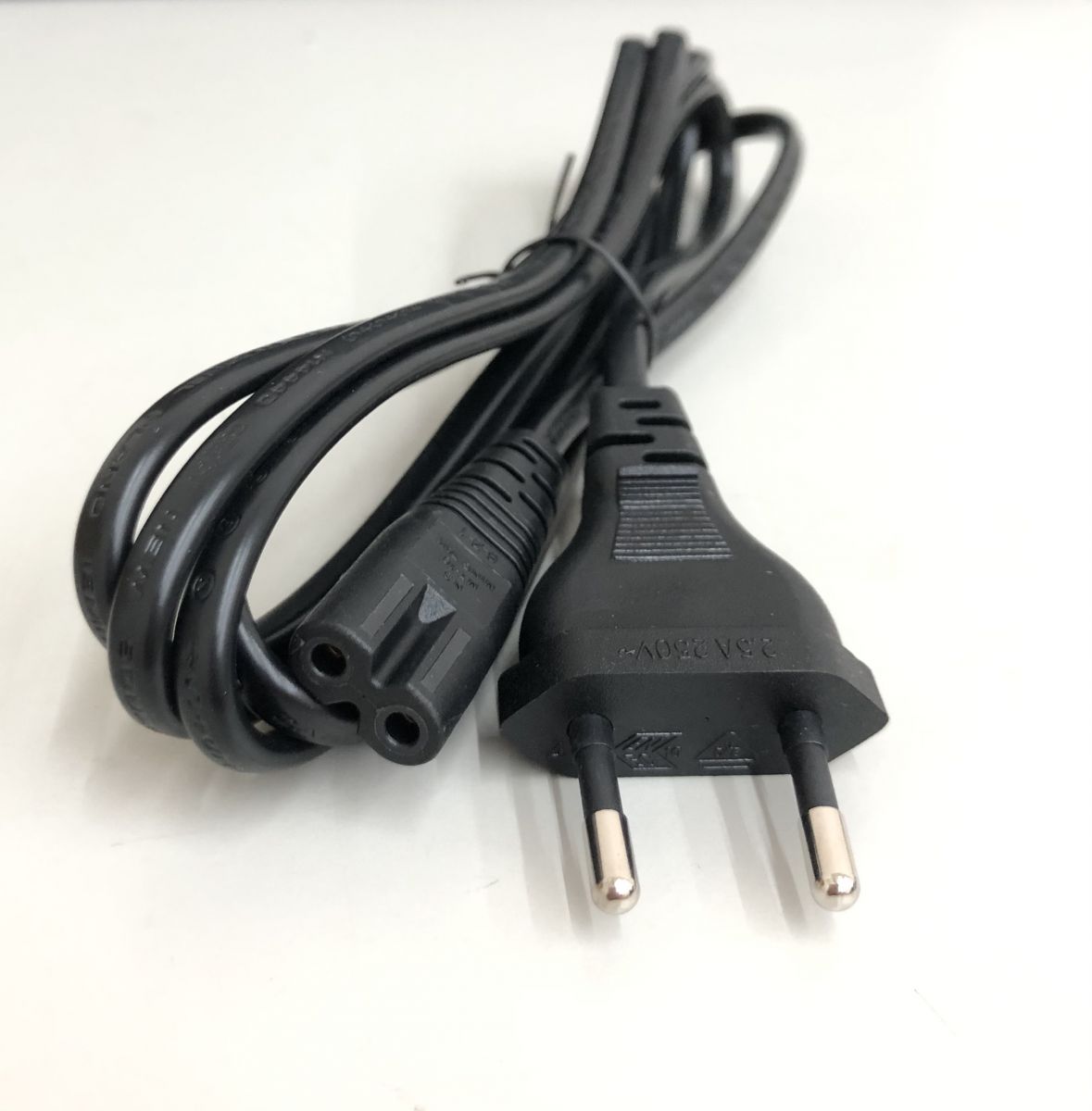

►EU plug power cord( HP 2A with 2 pin power cord)
