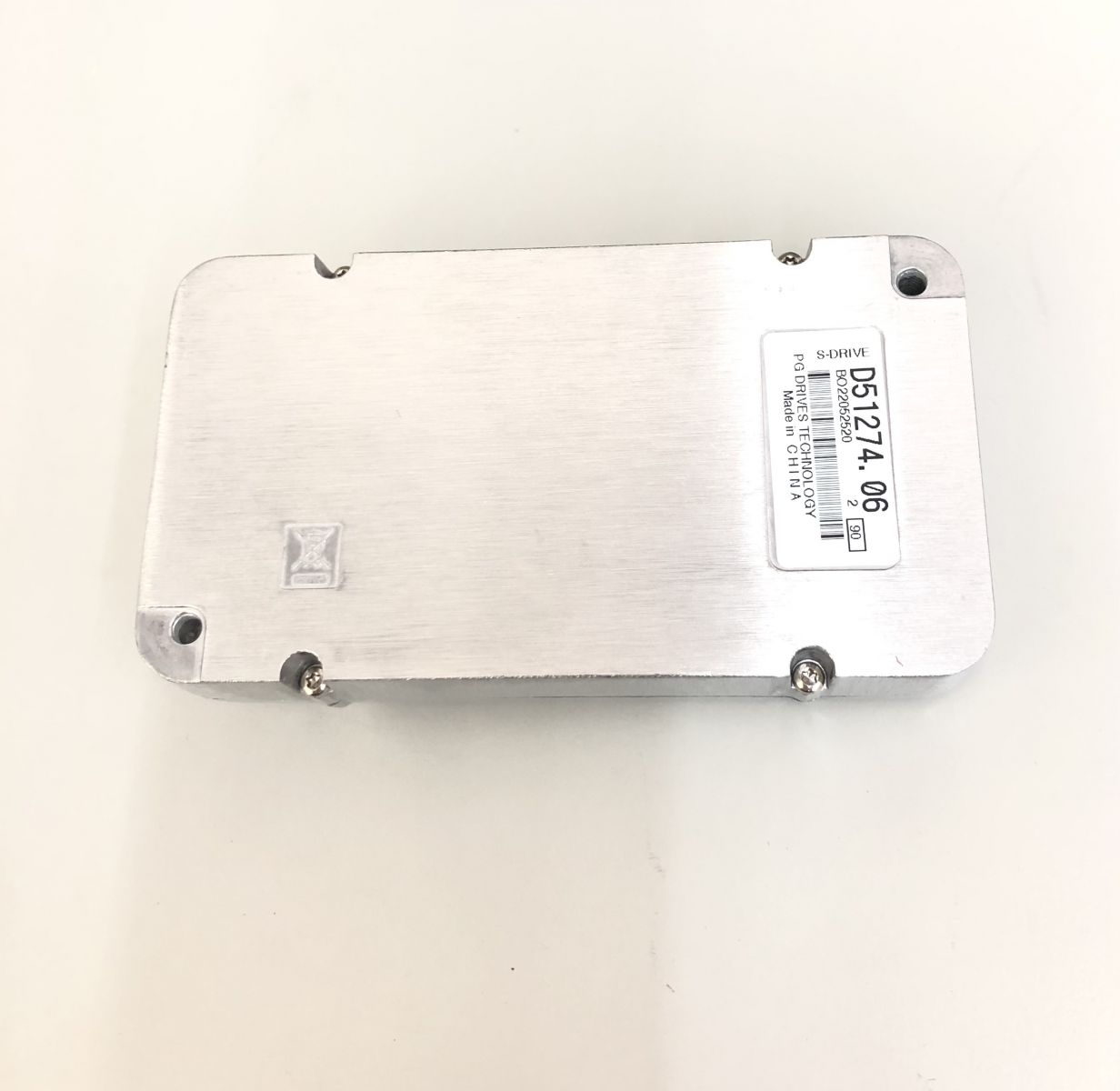

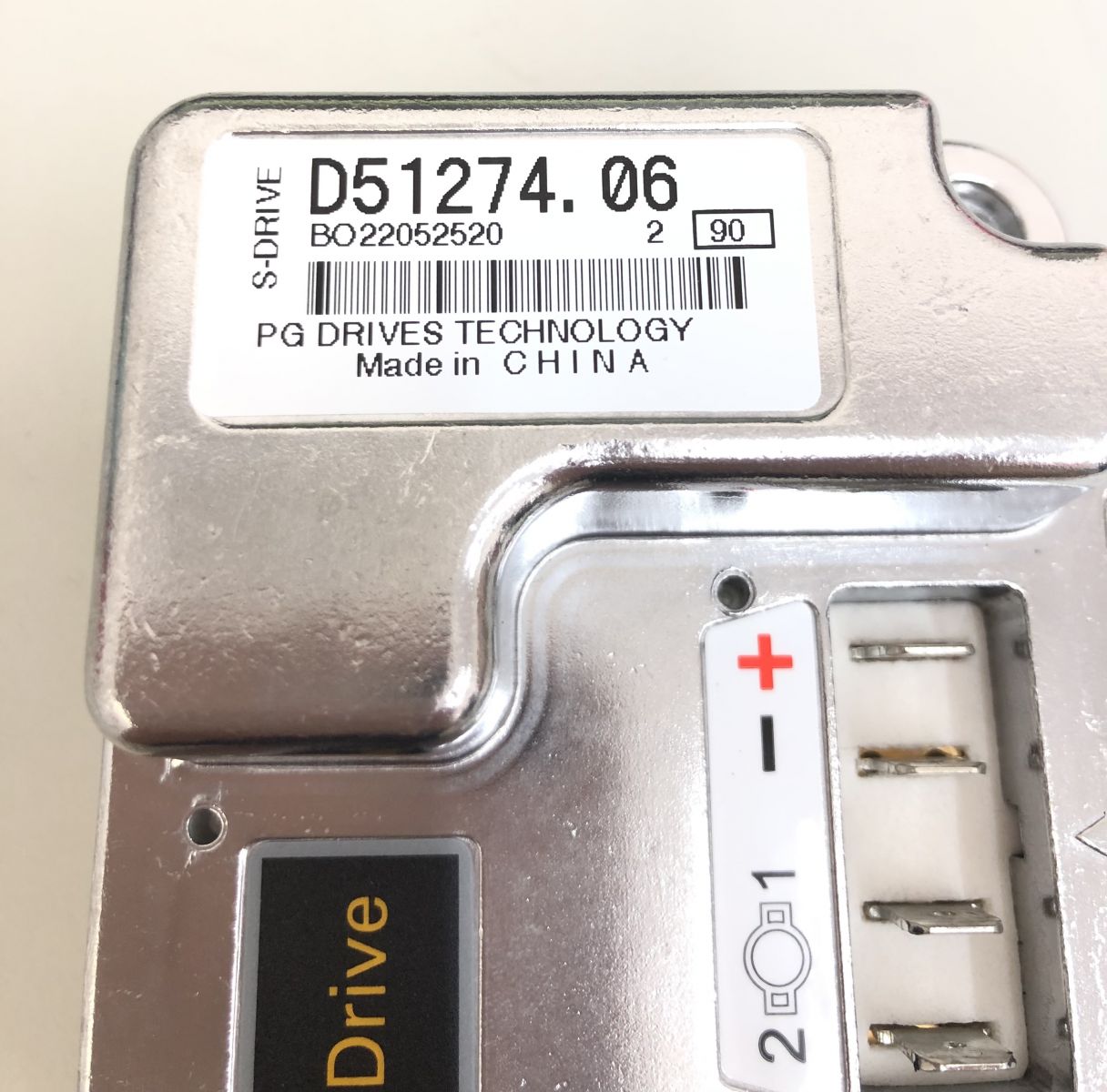

Product Specification ►Code: PG-S90 (PG S-Drive 90A Mobility Scooter Controller) ►Number: D51274.06 ►Water resistant sealing system ►Dimensions: L130 X W72 X H40 (mm) ►Weight: 450g ►Supply Voltage: 24Vdc ►Operating Voltage: 16Vdc to 28Vdc ►Peak Voltage: 35Vdc ►Reverse Battery Voltage: 40Vdc ►Output Current: 90A ►PWM Frequency: 20kHz ± 1% ►Brake Voltage: 24Vdc ►Brake Current: 1.25A max. continuous ►Battery Charging Current: 9 Arms max. ►Moisture Resistance: Electronics to IPX5, connections to IPX4 with terminal cover fitted ►Operating Temperature: -25°C to +50°C ►Storage Temperature: -40°C to +65°C ►Safety: Multiple hardware & software strategy ►Designed to ISO7176/14
| ||||||||||||||||
