DR90-A01

Product Category：	Controllers
Product Type：	Dynamic Controllers
Price：	EXW Taiwan Unit Price
Description:

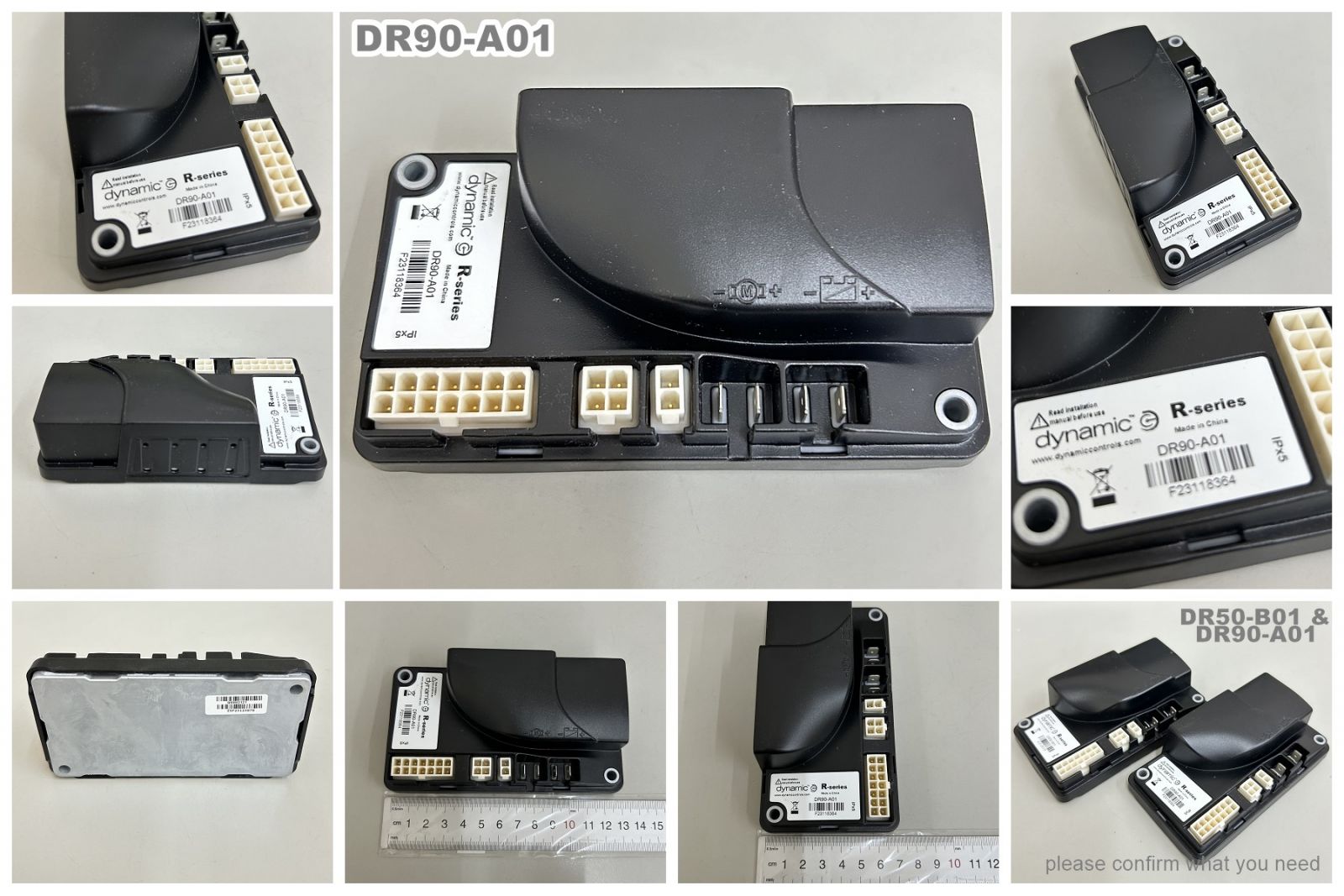

Dynamic R-Series 90A Mobility Scooter Controller

Product Specification

►Part No. DR90-A01

►Supply voltage, Brake voltage: 24V DC

►Operating voltage: 18~32V DC

►Peak current: 70 Amps

►Boost current: 20 Amps

►Boost duration: 5-10 seconds

►Charging current: 8 Amps RMS

►Material: Die-cast aluminum base with plastic cover (UL94 V-0 rating)

►Protection Rating: IPX5

►Operating Temperature: -25℃~50℃

►Dimensions: 131.5 x 72.5 x 40 (mm)

►Weight: 260g

►DR90-A01

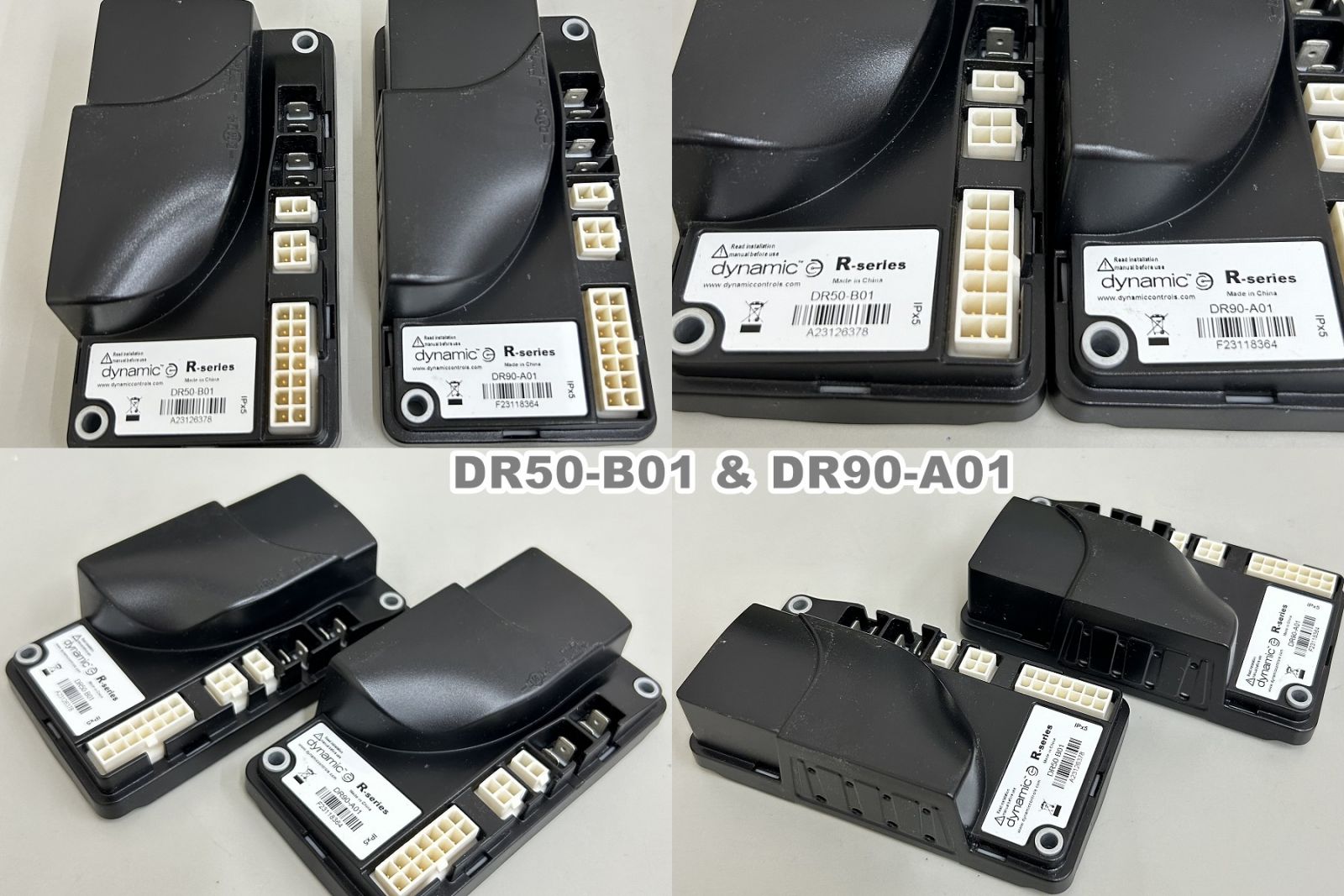

►DR50-B01 & DR90-A01 look like the same, please confirm what you need.

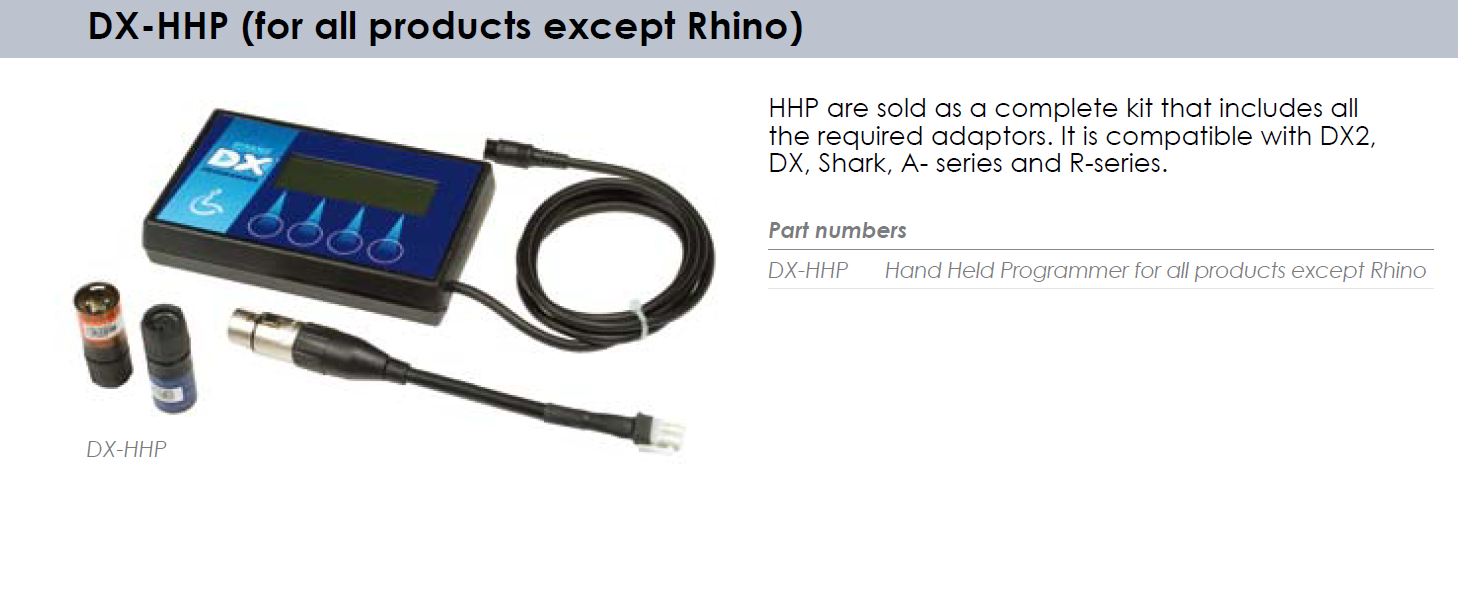

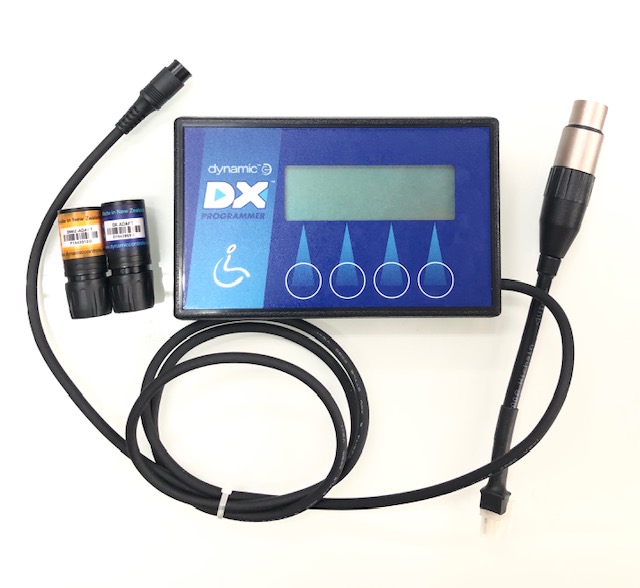

►Programming Tool, DX-HHP.
