     Home < Spare Parts < Motors/ Transaxles < Transaxle assembly < M#55-T2601427
M#55-T26014275
Product Category：Motors/ Transaxles
Product Type：Transaxle assembly
Price：EXW Taiwan Unit Price
Description:

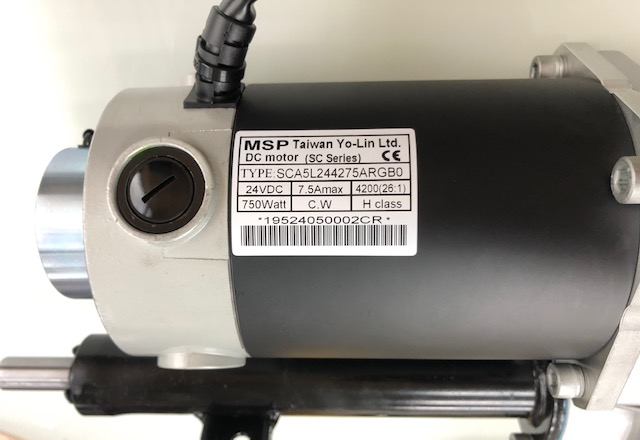

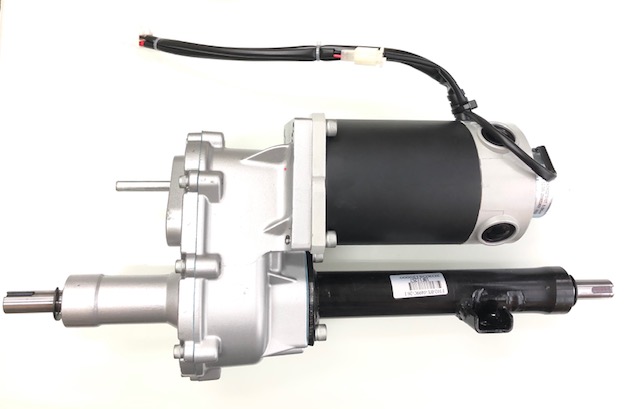

Transaxle Motor (M#55)

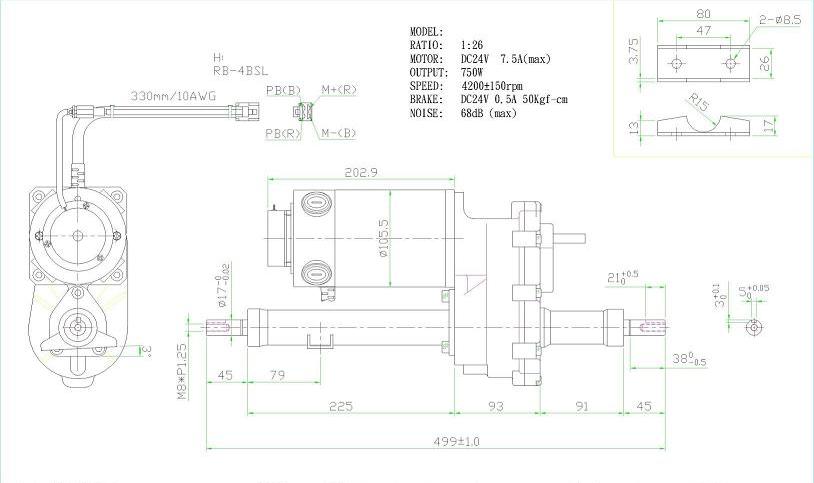

      Product Specification

►Code: M#55-T26014275

►Type Number:SC82A5L244275ARGB0

►Ratio: 1:26

►Output Power: 750W

►Motor: DC24V 7.5A(max)

►Speed: 4200±150rpm

►Transaxle total length:  499 mm

►Brake incl.: 5Nm, 12W, 2DX0X027010T

►Gross weight: 13.5KG ( 1 set)

►Volume:62*25*22cm

►Made in Taiwan

►Standard Type, transaxle with motor and brake

►Sea shipment for large quantity is available
