HP-5A
Product Category:Battery Chargers
Product Type:HP Battery Chargers
Price:EXW Taiwan Unit Price
Description:

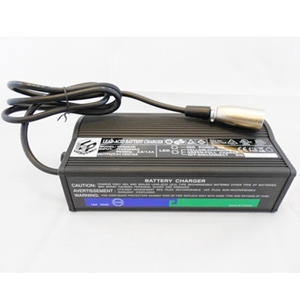

High Power 24V 5A Lead-Acid Battery Charger
      Product Specification

►Model: HP8204B

►Output Voltage: 24V

►Max. Output Voltage: 31V

►Charger Current: 3A~6A Continuous

►Input Voltage: 115 /230VAC, 60/50HZ (switch) 115V (95~132V) / 230V (180~264V)

►Protection against Over-voltage: about 32.5V automatic shut-off

►Protection against Overload: about 8A automatic shut-off

►Protection against short circuit: output fuse severs or automatically shut-off

►Operating Temperature: 0~40℃

►Dimensions: L180XW94XH53(mm)

►Weight: (approx.) 830g

►Approvals: UL, CSA, CE, TUV, T-Mark

►Remarks: XLR3 connector

►Our standard pack is without a power cord.

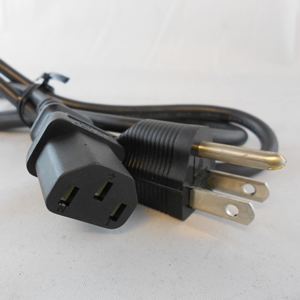

►Optional power cord (10A125V) offered: plug type 2-flat pins & 1 ground (for NEMA 5-15 outlet)

 ♦USA/ TW Plug Power Cord

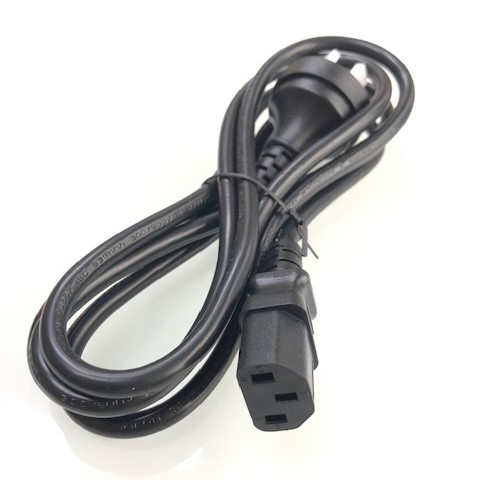

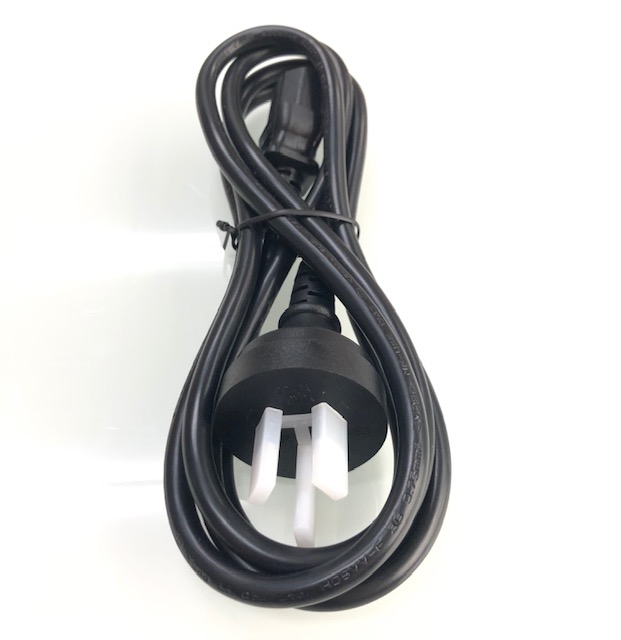

♦AU / NZ Plug Power Cord

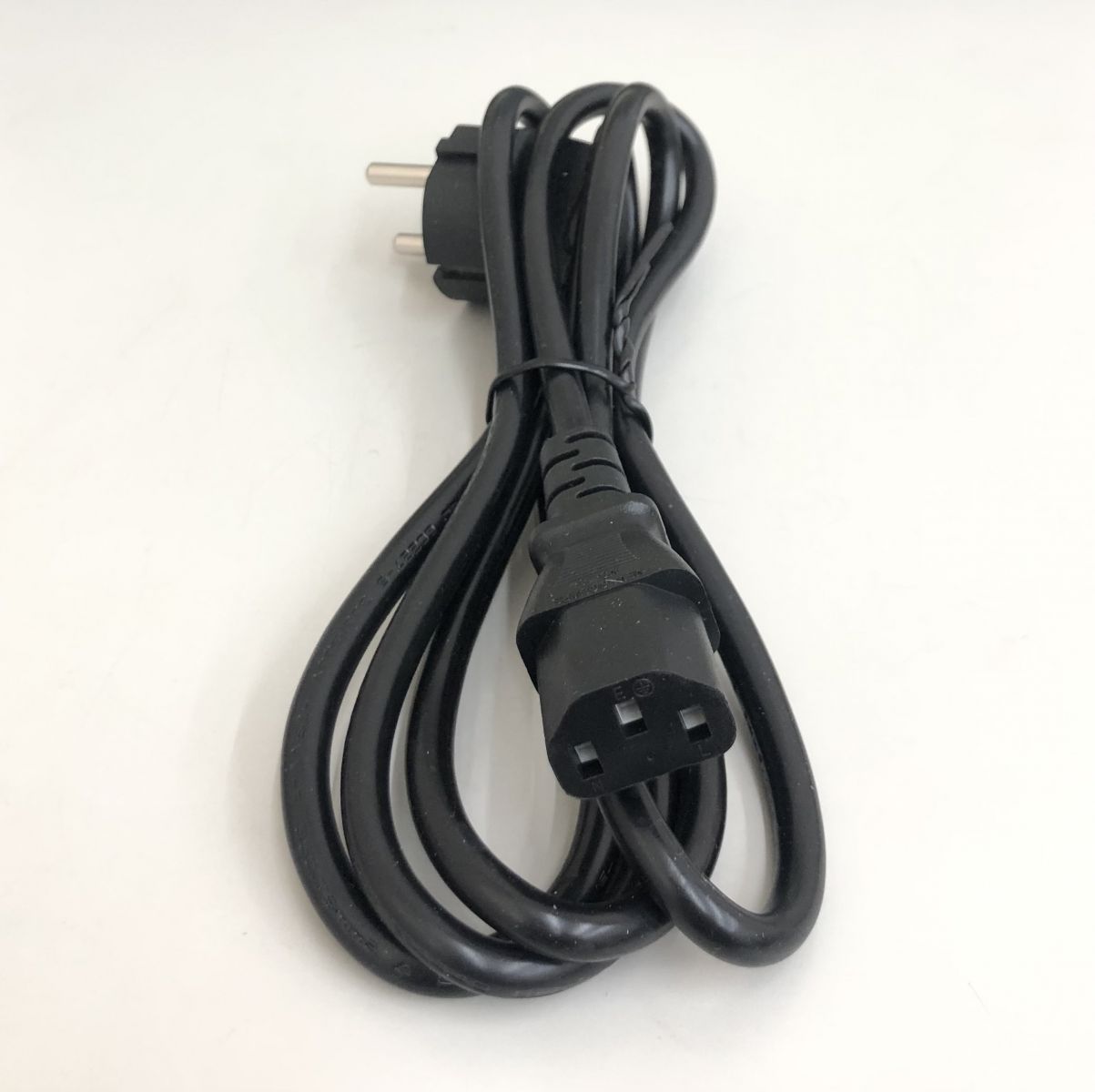

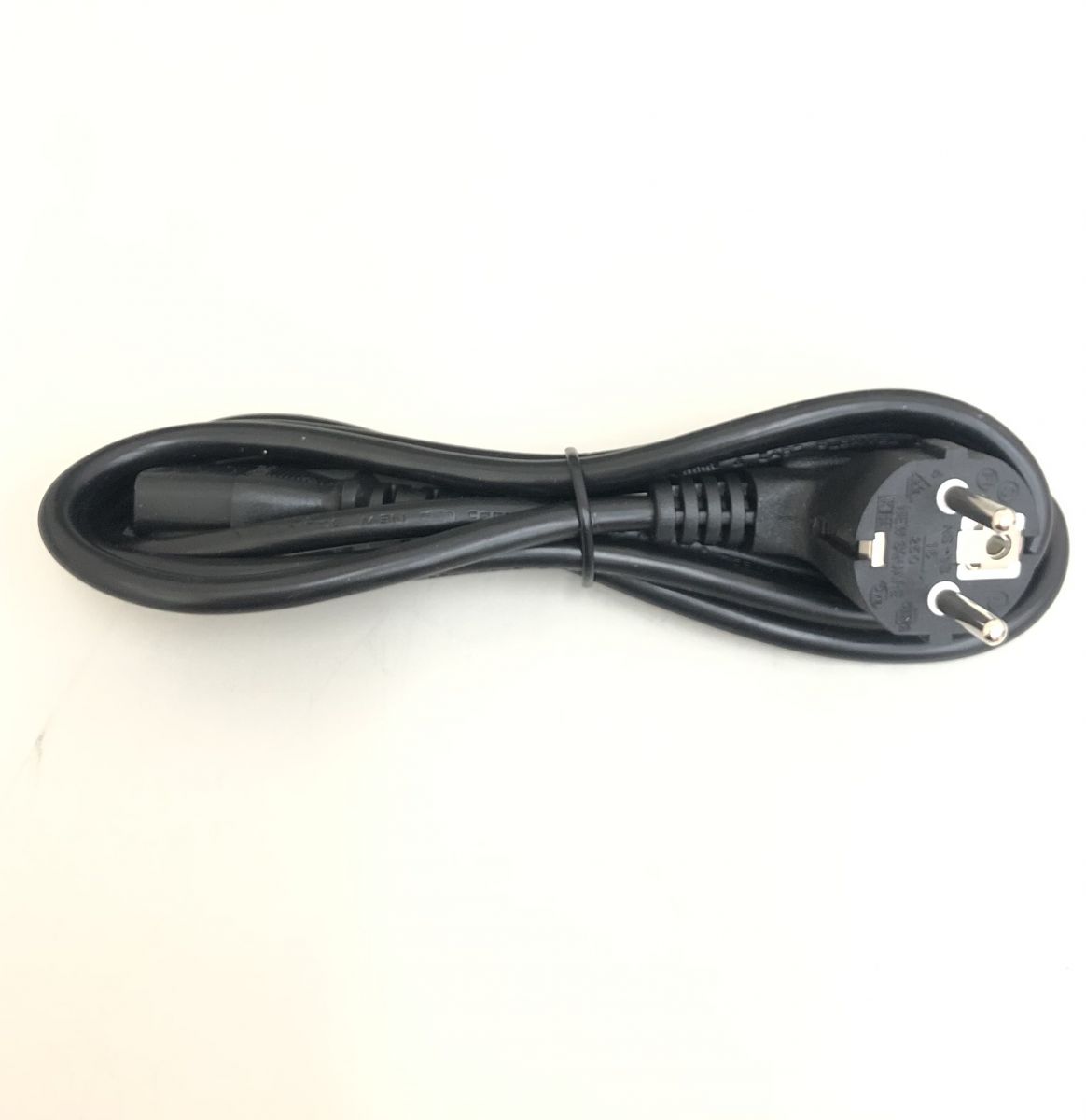

 ♦EU Plug Power Cord



►Please try extra order a universal adapter (hyperlink) from us or find your suitable power cord locally.

►Can be for Shoprider mobility scooters: F6Runner 10, 6Runner 10 Deluxe, FPC (Folding Power Chair), and Trooper

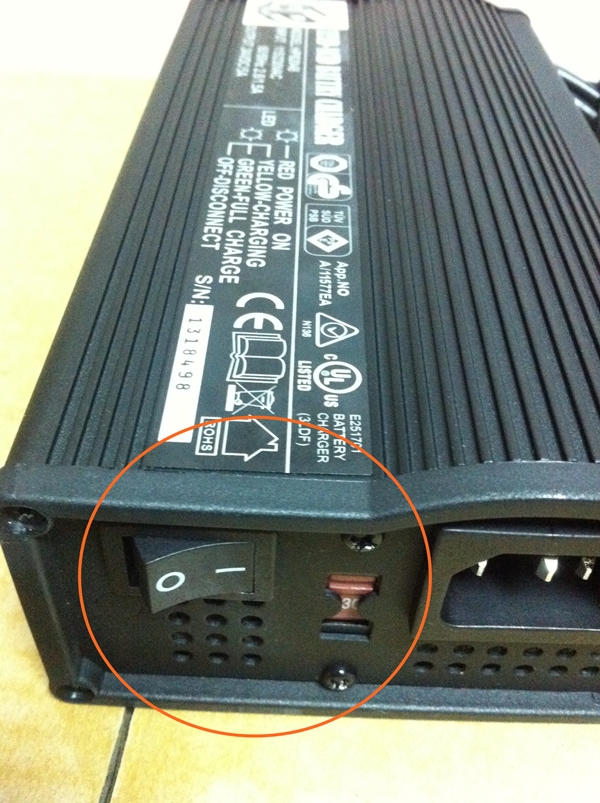

►Switch to 230V Model is available
