Product Category:Battery Chargers
Product Type:HP Battery Chargers
Price:EXW Taiwan Unit Price

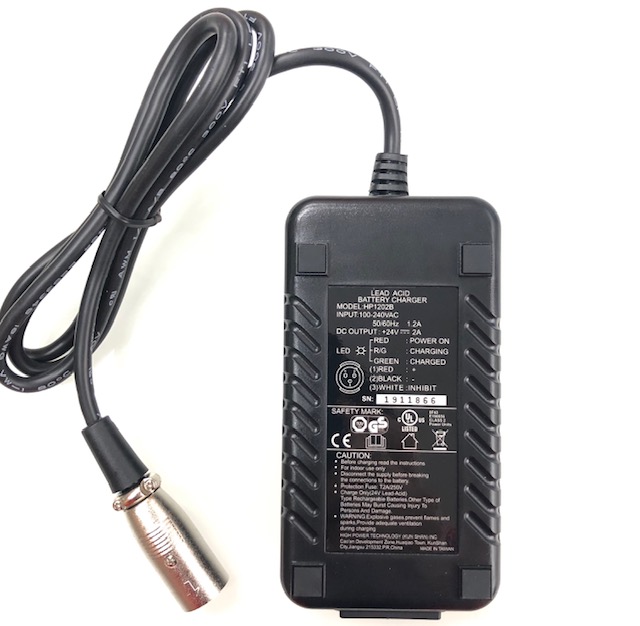

High Power 24V 2A Lead-Acid Battery Charger

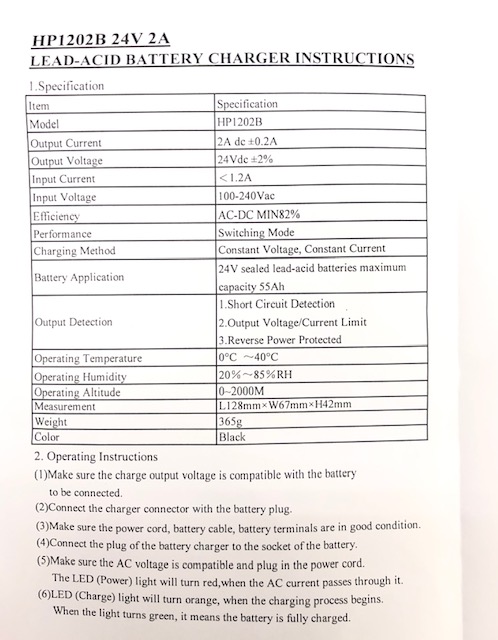

      Product Specification

►HP1202B is an unavailable product, please use a new type to replace the HP1202B.

   New item code is HP0060WB-M.

►Model: HP1202B (Switching mode)

►Output Current: 2A dc ± 0.2A

►Output Voltage: 24V ± 2%

►Input Current: <1.2A

►Input Voltage: 100-240Vac

►Efficiency: AC-DC 82% min

►Charging Method: Constant current, constant voltage

►Output Detection: short circuit detection, reverse power protected, output voltage / current limit

►Operating Temperature: 0~40℃

►Operating Humidity: 20%~85%

►Dimensions: L128XW67XH42(mm)

►Weight: (approx.) 365g

►Case material: Polycarbonate

►Remarks: XLR3 connector

►Our standard pack is without a power cord.

►Optional power cord offered (as shown below): plug type 2-flat pins & 1 ground (for NEMA 5-15 outlet)

►Please try extra order a universal adapter (hyperlink) from us or find your suitable power cord locally.

►Can be for Shoprider mobility scooters: Cooper, Dasher, Echo, EZ Chopper, Hero, Jiffy, Jimmy, Scootie Jr., Start, XtraLite 3 and XtraLite 4
