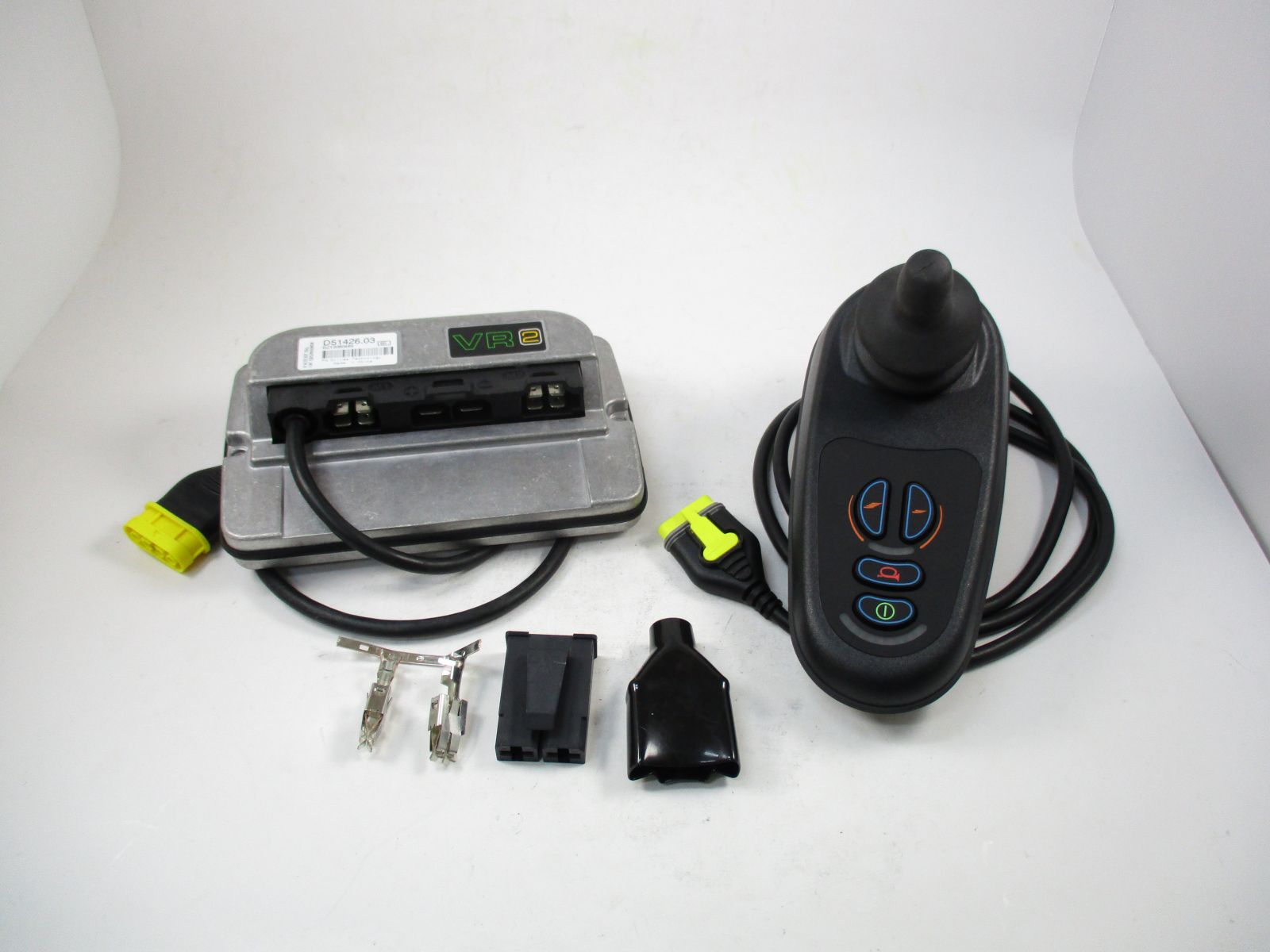

Product Specification ►PG-NEWVR2-J: PG NEW VR2 60A Power Wheelchair Controller (Joystick Module) ►Dimensions (Joystick): L174 x W78.5 x H125 (mm), 450g

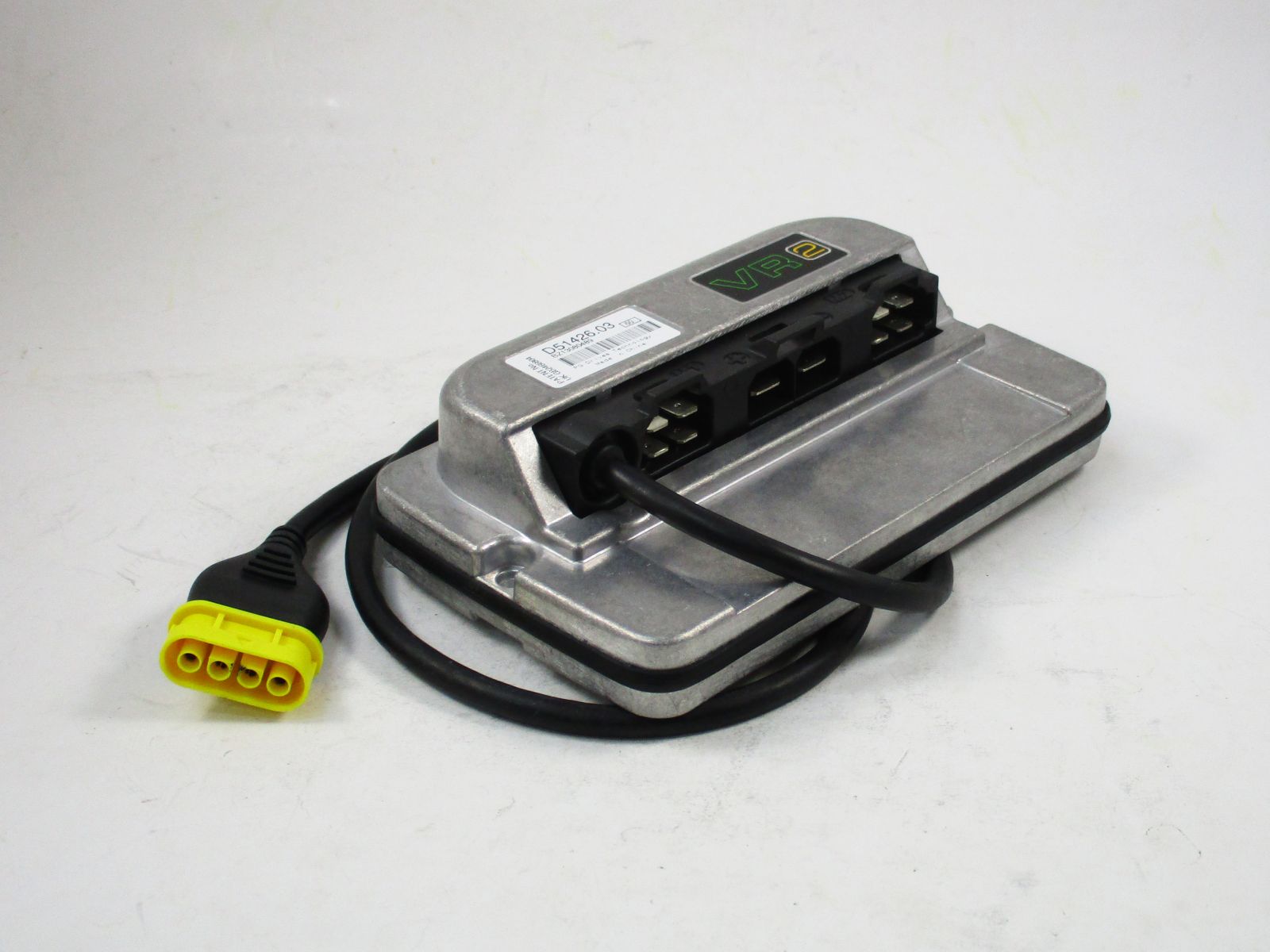

►PG-NEWVR2-P: PG NEW VR2 60A Power Wheelchair Controller (Power Module) ►Power module: 60A version. ►Dimensions (Power module): L177 x W105 x H50.5 (mm), 800g ►Supply Voltage: 24Vdc ►Operating Voltage: 16Vdc to 28Vdc ►Peak Voltage: 38Vdc ►Reverse Battery Voltage: 40Vdc ►Drive Current: 60A ►PWM Frequency: 20kHz ►Brake Voltage: Programmable, 12Vdc or 24Vdc ►Brake Current: 1A max. per brake ►Battery Charging Current: 12 Arms max. ►Moisture Resistance: Electronics to IPX4 ►Operating Temperature: -25°C to +50°C ►Storage Temperature: -40°C to +65°C ►Safety: Multiple hardware & software strategy
►Designed to ISO7176/14
| ||||||||||||||||
