PG-S120
Product Category:Controllers
Product Type:PG Controllers
Price:EXW Taiwan Unit Price
Description:

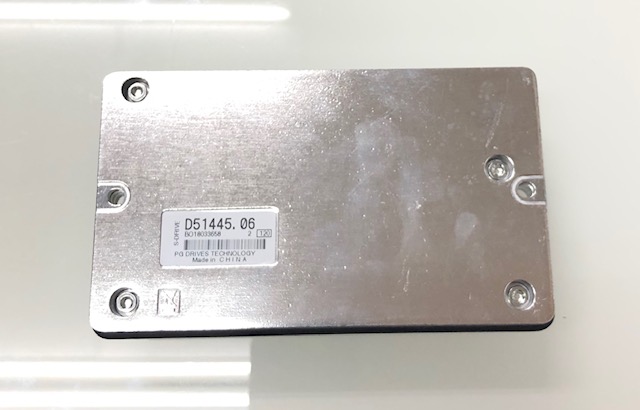

PG S-Drive 120A Mobility Scooter Controller
      Product Specification

►Code: PG-S120 (PG S-Drive 120A Mobility Scooter Controller)

►Number: D51445.06

►Water resistant sealing system

►Dimensions: L153 X W90 X H45 (mm)

►Weight:700g

►Without a controller terminal cover case.

►Supply Voltage: 24Vdc

►Operating Voltage: 16Vdc to 28Vdc

►Peak Voltage: 35Vdc

►Reverse Battery Voltage: 40Vdc

►Output Current: 120A / 140A

►PWM Frequency: 20kHz ± 1%

►Brake Voltage: 24Vdc

►Brake Current: 1.25A max. continuous

►Battery Charging Current: 9 Arms max.

►Moisture Resistance: Electronics to IPX5

►Operating Temperature: -25°C to +50°C

►Storage Temperature: -40°C to +65°C

►Safety: Multiple hardware & software strategy

►Designed to ISO7176/14
