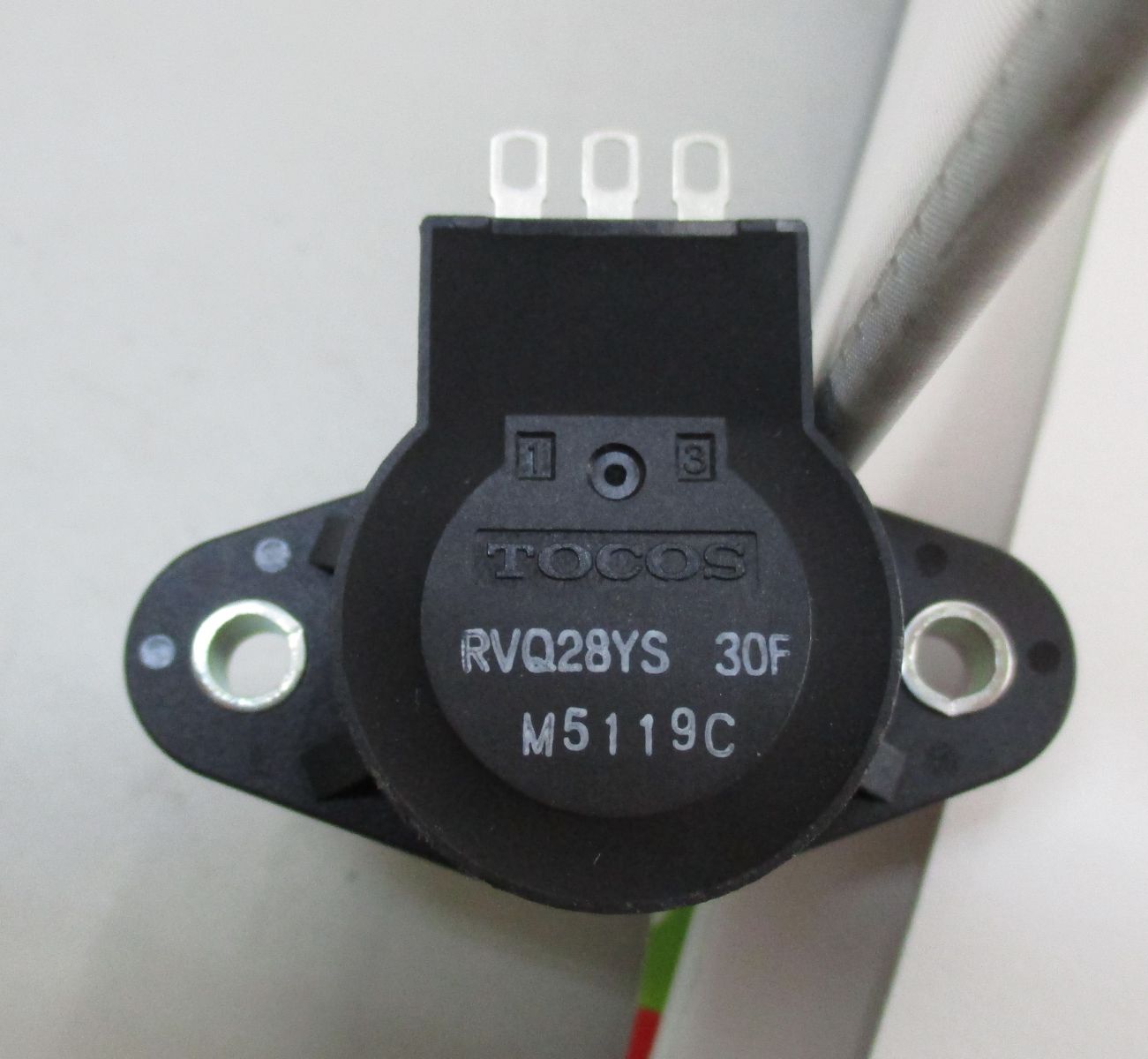

Product Specification ►Part no: RVQ28YS 30F ►Nominal total resistance: 5K Ohm (5000Ω) ►TOCOS throttle potentiometers are fit for most mobility scooters, 3 versions available: ►RVQ28YS 30F : 30mm in shaft length
●Resistance tolerance: ±10% ●Rotational life: 2,000,000 ±200 cycles ●Shift Diameter : 6.35mm ●Rotational torque : More than 200mN.m (2.04kgf) Both ends 0° and 60° position Rotation is possible at -10°C ●Electrical rotational angle : 45±5 There is dead-band at 50% position of effective electrical angle (Range of 26° to 34°) ●Stainless shaft, metal bushing ●Sealability : Degree of protection : IP64(Shaft seal ing, cover by enclosures. seal ing) JIS G 0920 Degrees of protection provided by enclosures ●Operating Temp. Range from -10℃ to 85℃ ●Potential applications: electric wheelchair, manual controls (throttle, joystick), electric vehicles,
personal mobility, off-road vehicles, golf cart, all terrain vehicles | ||||||||||||||||
