5KVR-T30S
Product Category:Potentiometers
Product Type:Throttle Potentiometers
Price:EXW Taiwan Unit Price
Description:

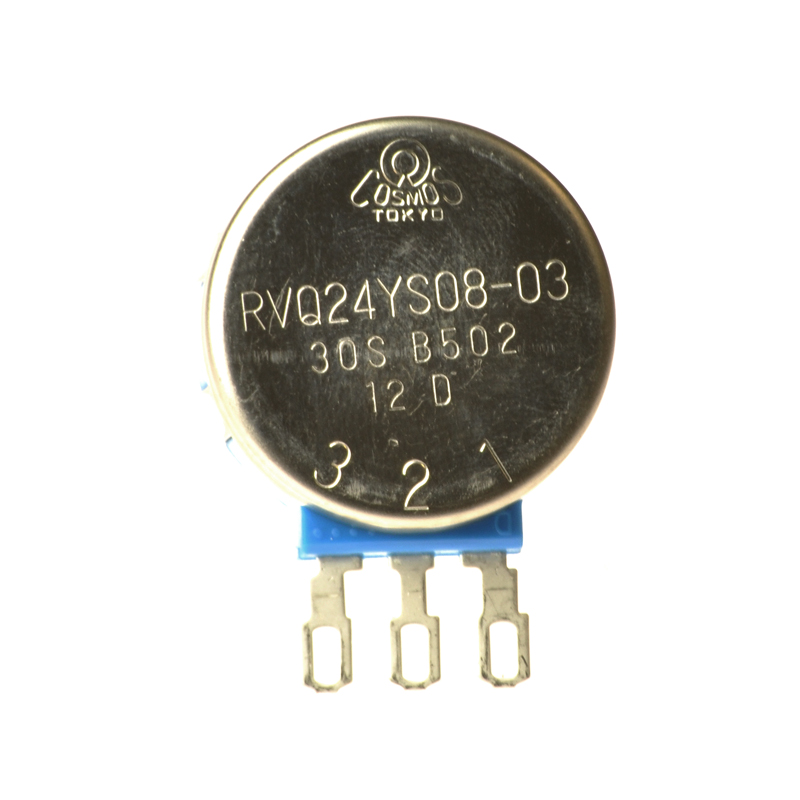

TOCOS Throttle Potentiometer 5KVR
      Product Specification

►Part no: RVQ24YS08-03 30S

►Nominal total resistance: 5K Ohm (5000Ω)

►30mm in shaft length

-Resistance tolerance: ±10%

-Rotational life: 2,000,000 cycles

-Adjustment travel: 300°±5°

-Stainless shaft, metal bushing

-Waterproof: IP64

-Size: Φ23 mm

-Operating Temp. Range from -10℃ to 85℃

-Potential applications: electric wheelchair, manual controls (throttle, joystick), electric vehicles, personal mobility, off-road vehicles, golf cart, all terrain vehicles

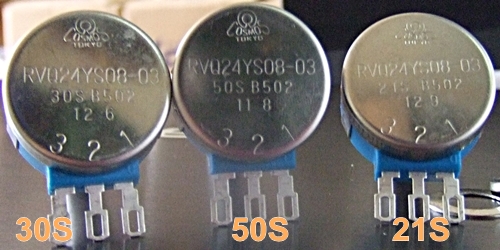

►Cosmos (RVQ24YN03-08) has been replaced by RVQ24YS08-03 21S/30S/50S series.

►TOCOS throttle potentiometers are fit for most mobility scooters, 3 versions available:
