PGNEWVSI-50A/B
Product Category:Controllers
Product Type:PG Controllers
Price:Contact us
Description:

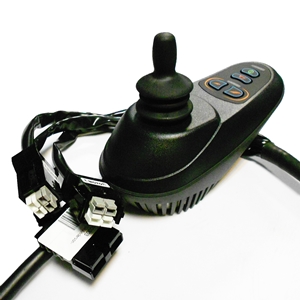

PG NewVSI 50A Power Wheelchair Controller (Beau / Anderson)
      Product Specification

►PGNEWVSI-50A: Anderson connector

►PGNEWVSI-50B: Beau 9-pin connector

►The newVSI is supplied with industry standard cable options, with either Beau or Anderson connections to the battery and motors. This enables an easy transition from older generations of VSI, or for using the newVSI on a new application.

►Operating Voltage: 16Vdc to 35Vdc

►Drive Current: 50A

►Overvoltage Trip: 35V

►Undervoltage Trip: 13.5V

►Reverse Battery Protection: 40V

►Size: 187X 143X 96mm

►Operating Temperature: -25°C to +50°C

►Storage Temperature: -40°C to +65°C

►Brake Current: 1A max. per brake

►Battery Charging Current: 12A RMS max.

►Charger Connector: Use Neutrik NC3MX

►Moisture Resistance: IPX4

►Safety: Multiple hardware & software strategy

►Designed to ISO7176:2008

►EMC on sample power chair

►Susceptibility: Tested at 30V/m to EN12184 and ANSI/RESNA requirements

►Emissions: To EN55022 Class B

►ESD: IEC801 part 2
