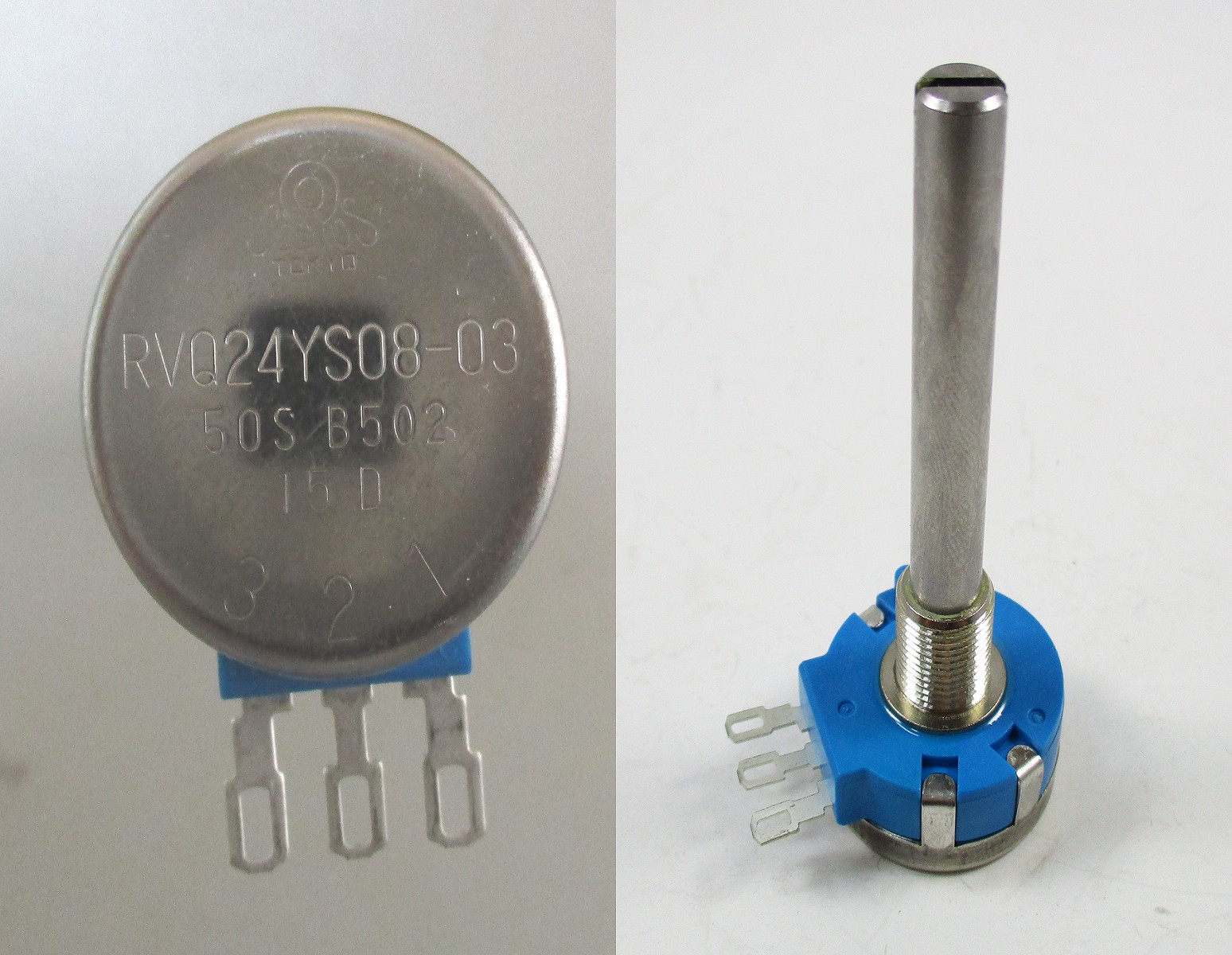

Product Specification ►Part no. C0416137 ►Resistance value: 5K Ohm ►Tolerance: ±10% ►Independent Linearity Error: ±5% ►Power Dissipation: 1W max. ►Effective Rotation Angle: 45±5(deg.) ►Mechanical Rotation between stops: 312±3(deg.) ►Stop Torque: 12 lb. in. min. ►Mounting Torque: 25 lb. in. min. ►Operating Torque: 6 oz. in. max. ►Bushing Thread: 3/8-32 NEF 2A ►Bushing Length: 0.500 in.±.016 ►Shaft Diameter: 0.250 in.±.002 ►Shaft Length, measured from mounting surface: 2.0 in.±.032 ►Shaft End Feature: Slotted ►Anti-rotation Tab: 9-o’clock position ►Body Dimensions: 1.10 in. max. ►Rotational Life (<10% change in total resistance): 1M rotations min. ►Operating Temperature: -40℃~120℃ ►Replacement of TOCOS Throttle Potentiometer RVQ24YS08-03-50S Shaft length both 50mm, the same function
| ||||||||||||||||
