Spare Parts
 |
| |||||||||||||||
Product Specification

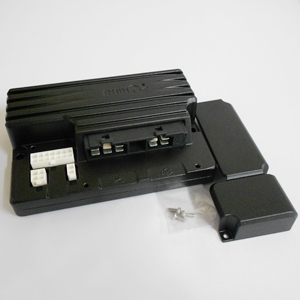

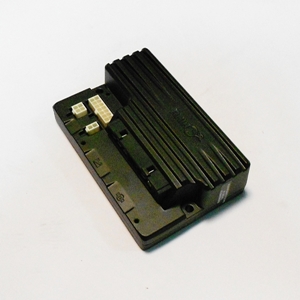

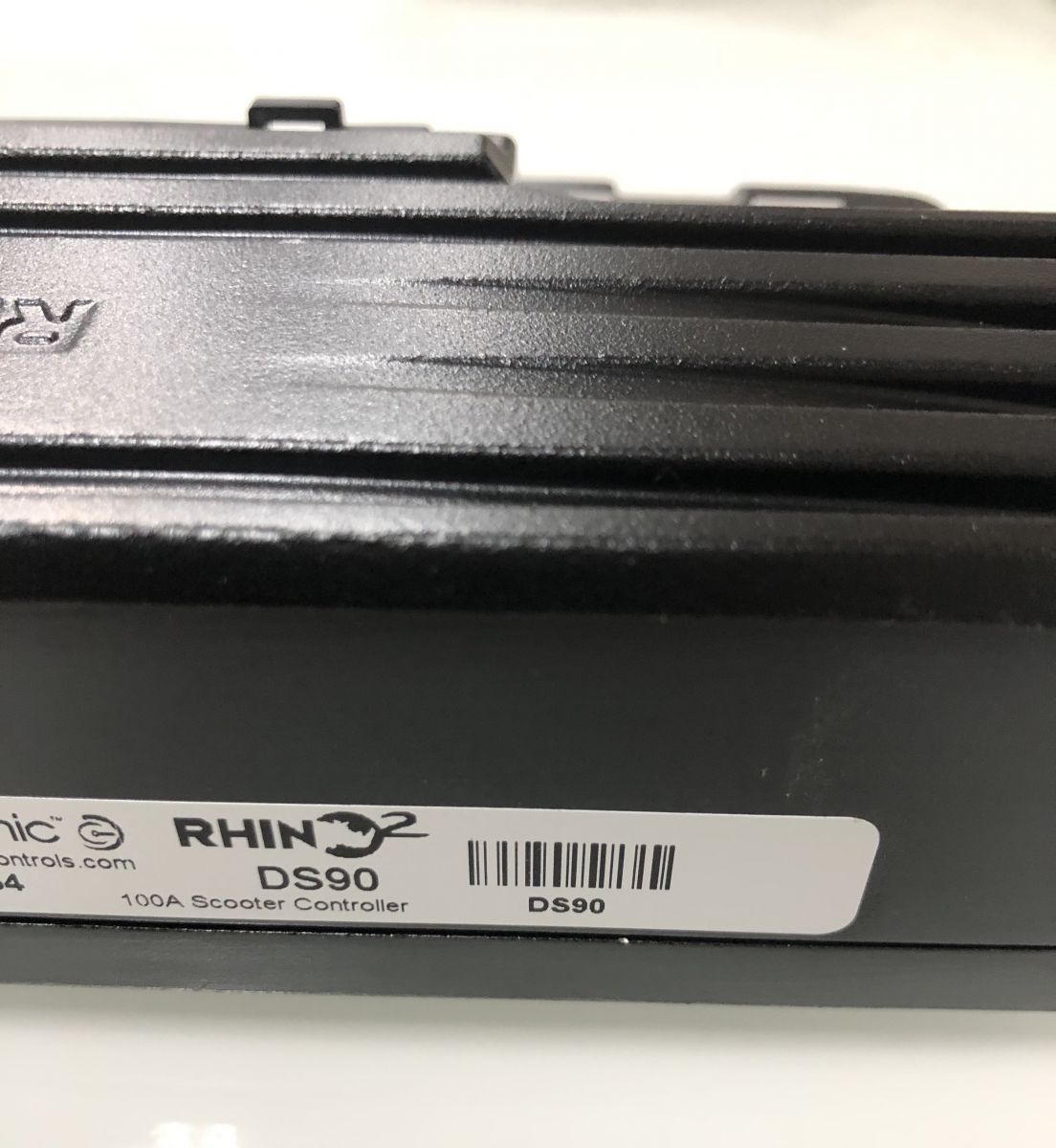

►Part No. DS90 (90Amp) ►Peak Current: 90A ►Peak Current Duration: > 3 mins ►Continuous Current: 36A ►Boosted Current: 100A ►Material: Electroplated die-cast aluminum ►Operating Temp: -25°C to 50°C ►Protection Rating: IP54 ►Size: 153mm X 100mm X44mm ►Weight: 1 kg ►A terminal cover can be included – An optional terminal cover is available for additional mechanical protection to the terminals ►Rhino2 controllers are available in 90A, 120A , 160A, 180A variants (with boosted power up to 100A, 140A and 180A respectively) to meet the requirements of all types of scooter.
| ||||||||||||||||
